MAX3208EAUB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3208EAUB+T - ESD Protection Device, µMAX, 10 Pins, 5.5 V, 444 mW, MAX32 Series

Download MAX3208EAUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

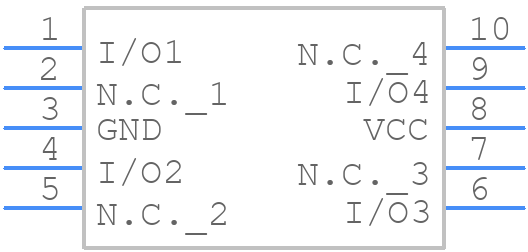

MAX3208EAUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3208EAUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX
click to zoom
3D Models
MAX3208EAUB+T - Analog Devices - 3D model - Small Outline Packages - 10 µMAX
click to zoom

MAX3208EAUB+T Details

  • Manufacturer Part Number:

    MAX3208EAUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MO-187BA, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Date Of Intro:

    2004-08-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    LOW CAPACITANCE

  • Clamping Voltage-Max:

    105.5 V

  • Configuration:

    SINGLE, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    0.95 V

  • JEDEC-95 Code:

    MO-187BA

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.696 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Reverse Current-Max:

    0.1 µA

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX3208EAUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3208EAUB+T is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a common-mode filter or a ferrite bead to filter out high-frequency noise on the USB lines.
  • To ensure reliable operation of the MAX3208EAUB+T in high-temperature environments, make sure to follow the recommended operating temperature range of -40°C to +85°C. Also, ensure good thermal dissipation by providing a heat sink or a thermal pad, and avoid overheating the device by keeping the power dissipation within the recommended limits.
  • The MAX3208EAUB+T supports USB cable lengths up to 3 meters (10 feet) without the need for repeaters or hubs. However, the actual cable length may vary depending on the cable quality, noise environment, and system configuration.
  • No, the MAX3208EAUB+T is a USB 2.0 transceiver and is not compatible with USB 3.0 applications. It is designed to operate at a maximum data rate of 480 Mbps, which is the maximum data rate for USB 2.0.
  • To troubleshoot USB connectivity issues with the MAX3208EAUB+T, check the USB cable and connector for damage or corrosion, ensure that the device is properly powered, and verify that the USB host controller is functioning correctly. Also, use a USB protocol analyzer or a logic analyzer to debug the USB communication and identify any errors or issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3208EAUB+T Overview

Use the download button to access the MAX3208EAUB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Transient Suppressors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
