MAX32631ICQ+ - Analog Devices

MAX32631ICQ+ Details

• Manufacturer Part Number:

  MAX32631ICQ+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

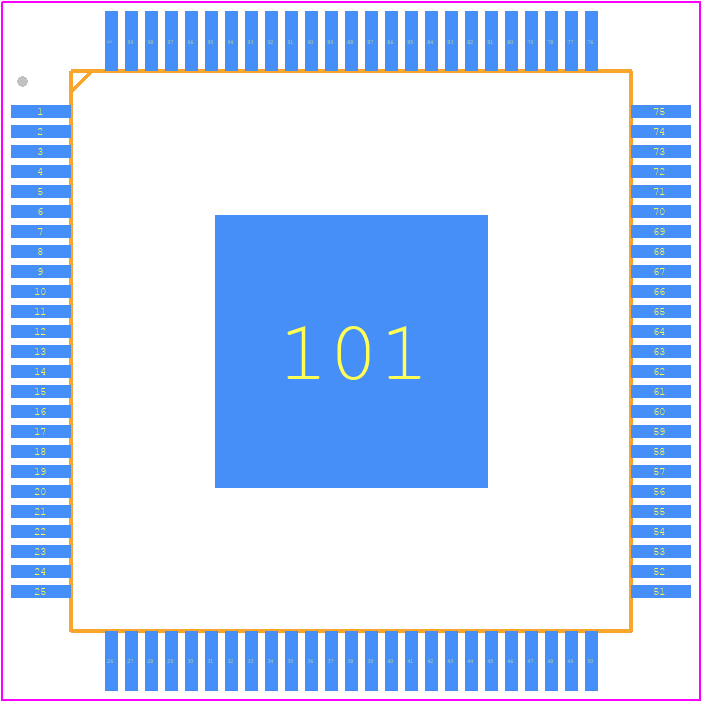

• Part Package Code:

  100-TQFP_EP-14X14X1.0

• Package Description:

  TQFP-100

• Pin Count:

  100

• Manufacturer Package Code:

  100-TQFP_EP-14X14X1.0

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.31.00.25

• Date Of Intro:

  2016-04-22

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Has ADC:

  YES

• Additional Feature:

  ALSO REQUIRES 1.8V NOM SUPPLY

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  0.032 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G100

• JESD-609 Code:

  e3

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  62

• Number of Terminals:

  100

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  524288

• ROM (words):

  2097152

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  96 MHz

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.2 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
