MAX3272AETP+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3272AETP+T - Limiting Amplifier, 2.5Gbps Data Rate, 3 V, 3.6 V, TQFN, 20 Pins, -40 °C

Download MAX3272AETP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

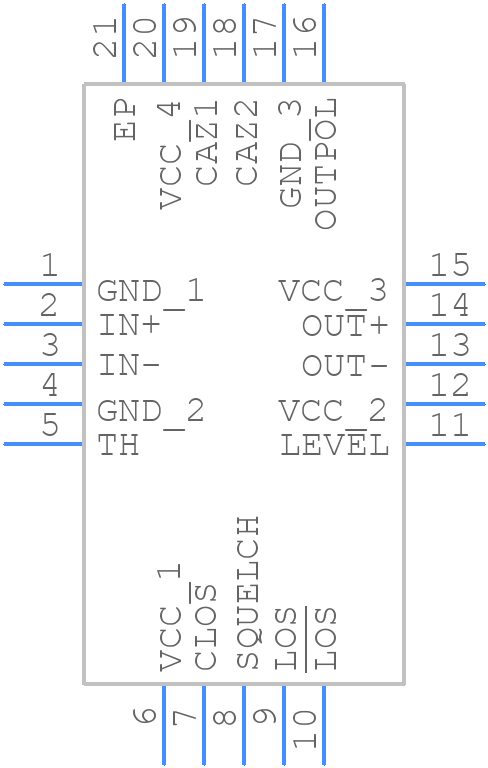

MAX3272AETP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3272AETP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX3272AETP+T
click to zoom
3D Models
MAX3272AETP+T - Analog Devices - 3D model - Quad Flat No-Lead - MAX3272AETP+T
click to zoom

MAX3272AETP+T Details

  • Manufacturer Part Number:

    MAX3272AETP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220-WGGD-1, TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-01-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Applications:

    ATM; SDH; SONET

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.044 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX3272AETP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3272AETP+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog inputs.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, keep the cable length as short as possible (less than 1 meter) to minimize signal attenuation and noise pickup. If longer cables are necessary, use shielded cables and consider adding signal repeaters or amplifiers.
  • To troubleshoot issues with the MAX3272AETP+T, start by verifying the power supply and decoupling. Check the device's output signals using an oscilloscope or logic analyzer. Ensure that the device is properly configured and that the input signals are within the specified range. If issues persist, consult the datasheet and application notes, or contact Analog Devices' technical support.
  • Yes, the MAX3272AETP+T is a high-speed device and can be susceptible to electromagnetic interference (EMI). To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and ensure that the PCB layout is optimized for EMI reduction. Additionally, consider adding EMI filters or shielding to the device's inputs and outputs.
