MAX33011EASA+ - Analog Devices

Description: CAN Interface IC +5V CAN Transceiver with +/-65V FP, +/-25V CMR, +/-25kV ESD, FD/FR, Silent

Download MAX33011EASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

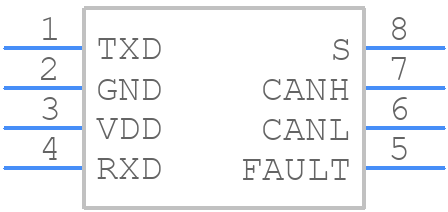

MAX33011EASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX33011EASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+4
click to zoom
3D Models
MAX33011EASA+ - Analog Devices - 3D model - Small Outline Packages - S8+4
click to zoom

MAX33011EASA+ Details

  • Manufacturer Part Number:

    MAX33011EASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-03-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX33011EASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX33011EASA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX33011EASA+ in noisy environments, use a low-pass filter on the input signals, use a shielded cable for the input signals, and place the device in a shielded enclosure. Additionally, consider using a common-mode choke on the input signals to reduce electromagnetic interference (EMI).
  • The maximum operating temperature range for the MAX33011EASA+ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it's recommended to derate the device's performance accordingly.
  • Yes, the MAX33011EASA+ can be used in a 3.3V system. The device's digital output is 3.3V-compatible, and the analog input can be biased to 3.3V using an external voltage reference. However, the device's performance may be affected at lower supply voltages, and it's recommended to consult the datasheet for specific guidelines.
  • Common issues with the MAX33011EASA+ include incorrect pin connections, inadequate power supply decoupling, and noise on the input signals. To troubleshoot these issues, use a logic analyzer or oscilloscope to verify the device's digital output, check the power supply voltage and decoupling, and use a signal generator to verify the input signals.
