MAX33040EAKA+ - Analog Devices

Description: +3.3V, 5Mbps CAN Transceiver with ?40V Fault Protection

Download MAX33040EAKA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

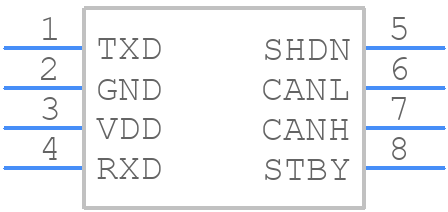

Symbol
MAX33040EAKA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX33040EAKA+ - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8CN+2C
click to zoom
3D Models
MAX33040EAKA+ - Analog Devices - 3D model - SOT23 (8-Pin) - K8CN+2C
click to zoom

MAX33040EAKA+ Details

  • Manufacturer Part Number:

    MAX33040EAKA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX33040EAKA+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX33040E+ is to keep the analog and digital sections separate, with a solid ground plane underneath the device. The layout should also minimize noise coupling between the analog and digital sections. A 4-layer board with a dedicated analog ground plane is recommended.
  • To optimize the performance of the MAX33040E+ in a noisy environment, use a low-pass filter on the input signals, use a high-quality power supply with low noise and ripple, and use shielding and grounding techniques to minimize electromagnetic interference (EMI).
  • The maximum operating temperature range for the MAX33040E+ is -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • The MAX33040E+ is not specifically designed for radiation-hardened applications. However, Analog Devices provides radiation-hardened versions of some of its products. The user should contact Analog Devices for more information on radiation-hardened products.
  • The recommended power-up sequence for the MAX33040E+ is to power up the analog supply (VCC) first, followed by the digital supply (VDD). The user should also ensure that the input signals are stable and within the specified range before powering up the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX33040EAKA+ Overview

Use the download button to access the MAX33040EAKA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
