MAX33042EAKA+T - Analog Devices

Description: +5V, 4Mbps CAN Transceiver with ±40V Fault Protection, ±25V CMR, and ±40kV ESD in 8-Pin SOT24

Download MAX33042EAKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

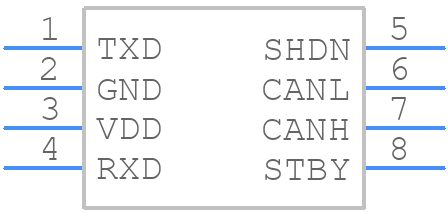

MAX33042EAKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX33042EAKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8CN+2C
click to zoom
3D Models
MAX33042EAKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8CN+2C
click to zoom

MAX33042EAKA+T Details

  • Manufacturer Part Number:

    MAX33042EAKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    4000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX33042EAKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX33042EAKA+T involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to use a 4-layer PCB with a dedicated power plane and to place decoupling capacitors close to the device.
  • The choice of external components depends on the specific application and requirements. The datasheet provides recommended values for the external components, but these may need to be adjusted based on the specific use case. It's recommended to consult the datasheet and application notes, and to perform simulations and testing to ensure the correct component values are chosen.
  • The MAX33042EAKA+T has an operating temperature range of -40°C to +125°C, but the device's performance and reliability may be affected at extreme temperatures. It's recommended to consult the datasheet and to perform testing to ensure the device meets the required specifications over the desired temperature range.
  • Troubleshooting issues with the MAX33042EAKA+T typically involves checking the PCB layout, component values, and power supply connections. It's also recommended to consult the datasheet and application notes, and to use oscilloscopes and other test equipment to diagnose the issue. In some cases, it may be necessary to contact Analog Devices' technical support for further assistance.
  • The MAX33042EAKA+T is a high-reliability device, but it's essential to consult the datasheet and to perform testing and validation to ensure the device meets the required specifications and standards for the specific application. It's also recommended to consult with Analog Devices' technical support and to follow industry best practices for designing and testing high-reliability systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX33042EAKA+T Overview

Use the download button to access the MAX33042EAKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
