MAX33042EASA+ - Analog Devices

Description: Maxim 5V CAN Version of CI36; 5Mbps, +/-36V FP, +/-25V CMR, +/-25kV ESD HBM

Download MAX33042EASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

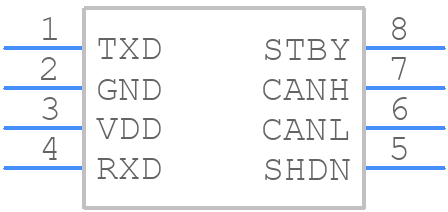

Symbol
MAX33042EASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX33042EASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2C
click to zoom
3D Models
MAX33042EASA+ - Analog Devices - 3D model - Small Outline Packages - S8+2C
click to zoom

MAX33042EASA+ Details

  • Manufacturer Part Number:

    MAX33042EASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    4000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX33042EASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX33042EASA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up, the MAX33042EASA+ requires a clean and stable power supply. The device should be powered up in the correct sequence, with VCC powering up before VDD. The power supply should be decoupled with a 0.1uF capacitor, and the device should be powered up slowly (dv/dt < 10V/us) to prevent latch-up.
  • The maximum clock frequency that can be used with the MAX33042EASA+ is 100MHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal. It's essential to ensure the clock signal is clean and stable to prevent jitter and other issues.
  • To troubleshoot issues with the MAX33042EASA+, start by reviewing the datasheet and application notes to ensure the device is being used correctly. Check the power supply, clock signal, and PCB layout for any issues. Use an oscilloscope to verify the signal integrity and check for any signs of noise or jitter. If the issue persists, contact Analog Devices Inc. support for further assistance.
  • The MAX33042EASA+ is not a radiation-hardened device and is not suitable for use in high-radiation environments. If radiation hardness is required, a different device should be selected. It's essential to review the device's radiation specifications and ensure it meets the requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX33042EASA+ Overview

Use the download button to access the MAX33042EASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
