MAX33053EASA+T - Analog Devices

Description: CAN Interface IC 3.3V CAN with High FP, CMR, and ESD with Silent Mode

Download MAX33053EASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

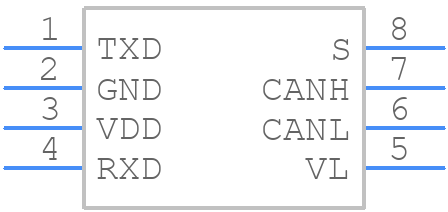

MAX33053EASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX33053EASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
MAX33053EASA+T - Analog Devices - 3D model - Small Outline Packages - -8 so
click to zoom

MAX33053EASA+T Details

  • Manufacturer Part Number:

    MAX33053EASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX33053EASA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX33053EASA+T involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and widths. It's also recommended to use a 4-layer PCB with a dedicated power plane and to place decoupling capacitors close to the device.
  • The choice of external components depends on the specific application and requirements. For example, the value of the external resistors (R1 and R2) depends on the desired output voltage and current. The datasheet provides guidelines and equations to help with component selection. Additionally, Analog Devices provides a web-based calculator tool to simplify the process.
  • The MAX33053EASA+T has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Troubleshooting the MAX33053EASA+T involves checking the PCB layout, component values, and soldering quality. It's also recommended to use a oscilloscope to measure the output voltage and current, and to check for any signs of oscillation or instability. Analog Devices provides application notes and technical support resources to help with troubleshooting.
  • Yes, the MAX33053EASA+T is compatible with lead-free soldering processes. The device is RoHS-compliant and meets the requirements of the European Union's Restriction of Hazardous Substances (RoHS) directive.
