MAX333ACPP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX333ACPP+ - Analogue Switch, Precision, 4 Channels, SPDT, 45 ohm, 10V to 30V, ± 4.5V to ± 20V, DIP, 20 Pins

Download MAX333ACPP+ Model

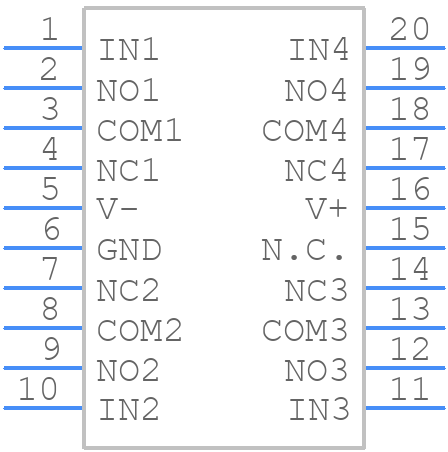

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

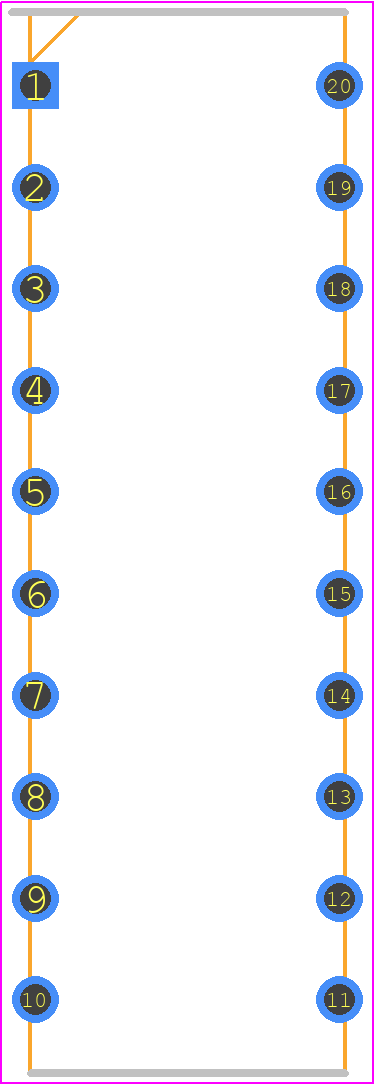

PCB Footprints
MAX333ACPP+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 PDIP
click to zoom
3D Models
MAX333ACPP+ - Analog Devices  - 3D model - Dual-In-Line Packages - 20 PDIP
click to zoom

MAX333ACPP+ Details

  • Manufacturer Part Number:

    MAX333ACPP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    145 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX333ACPP+ Frequently Asked Questions (FAQs)

  • To minimize EMI and noise, it is recommended to follow a star-grounding scheme, keep the input and output traces separate, and use a solid ground plane. Additionally, place the device close to the power supply and use a decoupling capacitor (e.g., 0.1uF) between VCC and GND.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence: VCC must be applied before the input signals, and the input signals must be stable before the output is enabled. Also, ensure that the VCC supply is stable and within the recommended operating range (3.0V to 5.5V).
  • The MAX333ACPP+ can sink or source up to 64mA of current per output pin. However, it is recommended to limit the current to 32mA or less to ensure reliable operation and to prevent overheating.
  • To handle thermal considerations, ensure good airflow around the device, and use a heat sink or thermal pad if necessary. The device's junction temperature (TJ) should be kept below 150°C to prevent overheating. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • The recommended input signal range for the MAX333ACPP+ is between 0V and VCC (3.0V to 5.5V). Input signals should not exceed VCC + 0.3V or go below -0.3V to prevent damage to the device.
