MAX333AEWP+T - Analog Devices

Description: Analog Switch ICs Precision, Quad, SPDT, CMOS Analog Switch

Download MAX333AEWP+T Model
Schematic

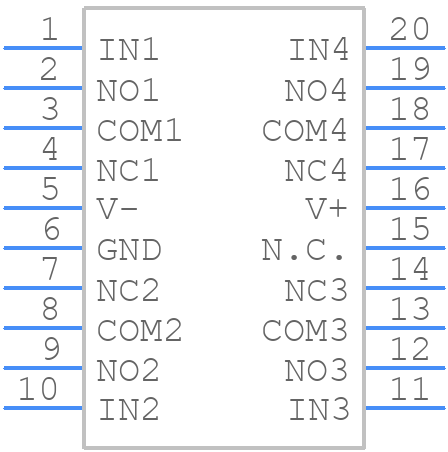

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX333AEWP+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - WIDE SO
click to zoom
3D Models
MAX333AEWP+T - Analog Devices  - 3D model - Small Outline Packages - WIDE SO
click to zoom

MAX333AEWP+T Details

  • Manufacturer Part Number:

    MAX333AEWP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SOIC_W-300_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    145 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX333AEWP+T Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX333AEWP+T is to keep the input and output traces separate, use a solid ground plane, and minimize the length of the traces. Additionally, it's recommended to place a 0.1uF bypass capacitor between VCC and GND, and to use a ferrite bead or a 10ohm resistor in series with the VCC line to reduce high-frequency noise.
  • To ensure proper power-up and initialization, it's recommended to follow a power-up sequence where VCC is applied before the input signals, and to hold the input signals low or in a high-impedance state during power-up. Additionally, the device requires a minimum of 2.5ms of power-up time to ensure proper initialization.
  • The MAX333AEWP+T can drive a maximum capacitive load of 100pF. Exceeding this limit may cause the device to oscillate or malfunction. If a larger capacitive load is required, an external buffer or a device with a higher drive capability should be used.
  • The MAX333AEWP+T has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device junction temperature below 120°C. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the power dissipation in the device.
  • The recommended input signal range for the MAX333AEWP+T is between 0V and VCC. Input signals exceeding VCC or going below 0V may cause the device to malfunction or be damaged. It's recommended to use input signal conditioning or clamping circuits to ensure the input signals are within the recommended range.
