MAX3353EEUE+ - Analog Devices

Description: USB On-the-Go Charge Pump TSSOP16 Maxim MAX3353EEUE+, Charge Pump 8mA 600 kHz, 4.63 → 5.25 V, 16-Pin, TSSOP

Download MAX3353EEUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

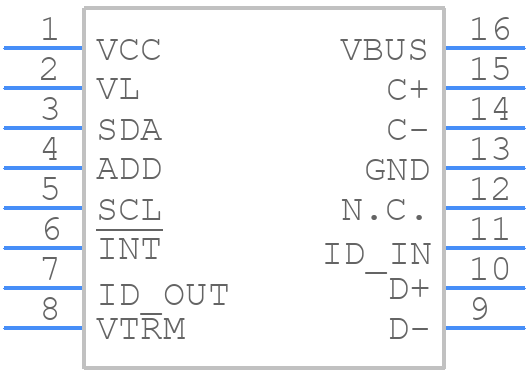

MAX3353EEUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3353EEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max TSSOP 4.40mm
click to zoom
3D Models
MAX3353EEUE+ - Analog Devices - 3D model - Small Outline Packages - Max TSSOP 4.40mm
click to zoom

MAX3353EEUE+ Details

  • Manufacturer Part Number:

    MAX3353EEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-06-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    4 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.015 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    600 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3353EEUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3353EEUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed close to the bypass capacitors to minimize parasitic inductance.
  • To ensure proper power-up and power-down of the MAX3353EEUE+, it is recommended to follow a specific power-up sequence. First, power up the VCC supply, followed by the VDD supply. During power-down, reverse the sequence. Additionally, ensure that the power supplies are ramped up and down slowly to prevent voltage spikes and glitches.
  • The MAX3353EEUE+ has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. The maximum allowed ESD protection for the MAX3353EEUE+ is 2kV human body model (HBM) and 200V machine model (MM).
  • The MAX3353EEUE+ is rated for operation up to 125°C, but it is recommended to derate the device's performance at high temperatures. The device's accuracy and linearity may degrade at high temperatures, and the maximum operating temperature should be limited to 105°C for most applications.
  • Common issues with the MAX3353EEUE+ include incorrect output voltage, oscillations, and excessive power consumption. To troubleshoot these issues, check the power supply voltages, ensure proper PCB layout and decoupling, and verify that the device is properly configured and programmed. Additionally, use an oscilloscope to monitor the device's output and input signals.
