MAX3375EEKA+T - Analog Devices

Description: Translation - Voltage Levels +/-15kV ESD-Protected, 1 uA, 16Mbps, Dual/Quad Low-Voltage Level Translators in UCSP

Download MAX3375EEKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

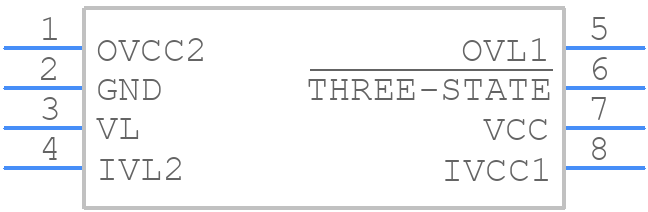

MAX3375EEKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3375EEKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8 SOT23
click to zoom
3D Models
MAX3375EEKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - 8 SOT23
click to zoom

MAX3375EEKA+T Details

  • Manufacturer Part Number:

    MAX3375EEKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    USED FOR SPI, MICROWIRE AND I2C LEVEL TRANSLATION

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX3375EEKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3375EEKA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types may vary depending on the specific application and operating conditions.
  • The MAX3375EEKA+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range is typically limited to -40°C to +85°C for most applications. However, this may vary depending on the specific use case and thermal management.
  • Yes, the MAX3375EEKA+T is suitable for high-reliability and automotive applications due to its high reliability, low dropout voltage, and high accuracy. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
  • To troubleshoot common issues with the MAX3375EEKA+T, start by checking the input voltage, output load, and PCB layout for any errors or inconsistencies. Verify that the device is properly soldered and that the input and output capacitors are correctly selected and placed. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3375EEKA+T Overview

Use the download button to access the MAX3375EEKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Level Translators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
