MAX3394EEBL+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3394EEBL+T - LEVEL TRANSLATOR, 6MBPS, UCSP-9

Download MAX3394EEBL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

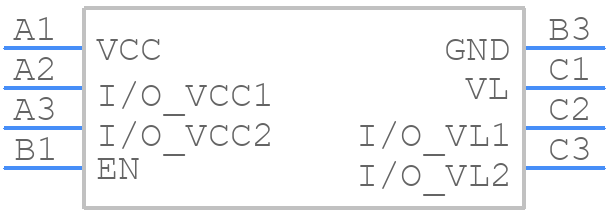

MAX3394EEBL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3394EEBL+T - Analog Devices PCB footprint - BGA - BGA - B9-5--0
click to zoom
3D Models
MAX3394EEBL+T - Analog Devices - 3D model - BGA - B9-5--0
click to zoom

MAX3394EEBL+T Details

  • Manufacturer Part Number:

    MAX3394EEBL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    UCSP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.67 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

MAX3394EEBL+T Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3394EEBL+T is to keep the analog and digital grounds separate, use a solid ground plane, and place the device close to the connector. Additionally, use short traces and avoid routing digital signals near the analog inputs. A 4-layer PCB with a dedicated ground plane is recommended.
  • The MAX3394EEBL+T requires a clean and stable power supply. Use a high-quality voltage regulator and decouple the power pins with 0.1uF and 10uF capacitors. Place the decoupling capacitors as close to the device as possible. Additionally, use a 10kΩ resistor in series with the VCC pin to prevent voltage overshoot during power-up.
  • The MAX3394EEBL+T can support cable lengths up to 100 meters, but this depends on the specific application and the quality of the cable. The device is designed to work with Category 5e or higher cables. For longer cable lengths, consider using repeaters or active cables.
  • To troubleshoot common issues with the MAX3394EEBL+T, start by checking the power supply and decoupling. Verify that the device is properly powered and decoupled. Next, check the signal levels and integrity using an oscilloscope. Ensure that the signal levels are within the specified range and that there is no signal degradation or noise. If the issue persists, check the PCB layout and routing for any potential issues.
  • Yes, the MAX3394EEBL+T is designed to support hot-swap applications. The device has built-in overcurrent protection and can withstand voltage transients during hot-swap events. However, ensure that the device is properly powered down before removing or inserting the connector to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3394EEBL+T Overview

Use the download button to access the MAX3394EEBL+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Level Translators
