MAX3395EETC+ - Analog Devices

Description: Translation - Voltage Levels 15kV ESD-Protected, High-Drive Current, Dual-/Quad-/Octal-Level Translators with Speed-Up Circuitry

Download MAX3395EETC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

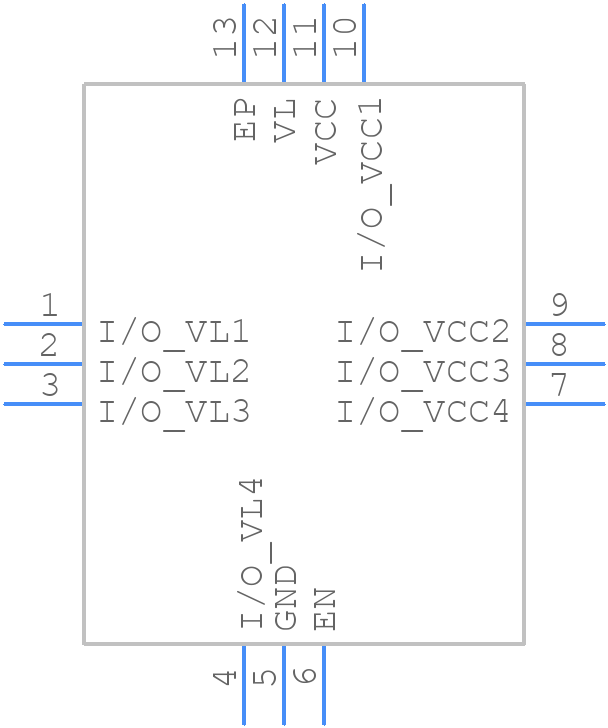

MAX3395EETC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3395EETC+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12 TQFN-EP
click to zoom
3D Models
MAX3395EETC+ - Analog Devices - 3D model - Quad Flat No-Lead - 12 TQFN-EP
click to zoom

MAX3395EETC+ Details

  • Manufacturer Part Number:

    MAX3395EETC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-4X4X0.75

  • Package Description:

    TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.16SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX3395EETC+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3395EETC+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the connector to minimize trace lengths. Additionally, using a shielded cable and connector can help reduce EMI.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its specified operating temperature range.
  • When using the MAX3395EETC+ in a system with multiple voltage domains, it's crucial to ensure that the device is powered from a stable, low-noise voltage source, and that the voltage domains are properly isolated to prevent noise and signal degradation.
  • To troubleshoot issues with the MAX3395EETC+, start by verifying the power supply and clock signals, then check the device's output signals using an oscilloscope or logic analyzer. Consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • When using the MAX3395EETC+ in a system with high-speed signals, it's essential to follow proper high-speed design practices, such as using controlled impedance traces, minimizing signal reflections, and ensuring proper signal termination.
