MAX3395EETC+T - Analog Devices

Description: Translation - Voltage Levels A +/- 15kV ESD-Protected, High-Drive Current, Dual-/Quad-/Octal-Level Translators with Speed-Up Circuitry

Download MAX3395EETC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

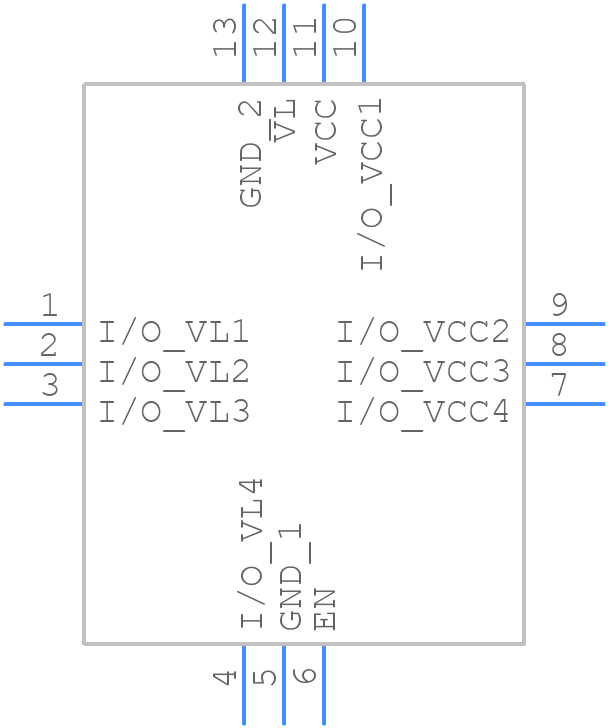

MAX3395EETC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3395EETC+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1244-4
click to zoom
3D Models
MAX3395EETC+T - Analog Devices - 3D model - Quad Flat No-Lead - T1244-4
click to zoom

MAX3395EETC+T Details

  • Manufacturer Part Number:

    MAX3395EETC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-220, TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.16SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX3395EETC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3395EETC+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper powering and decoupling, connect the VCC pin to a clean, low-noise power supply, and use a 0.1uF ceramic capacitor between VCC and GND as close to the device as possible. Additionally, use a 10uF electrolytic capacitor between VCC and GND to filter out low-frequency noise.
  • The MAX3395EETC+T can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and noise environment. In general, it's recommended to limit the data rate to 50Mbps or less to ensure reliable operation.
  • To troubleshoot common issues, first check the power supply and decoupling, ensuring that the device is properly powered and decoupled. Next, verify that the input signals are within the specified voltage range and that the output loads are within the recommended range. Use an oscilloscope to check the output waveforms and data transmission, and consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • Yes, the MAX3395EETC+T can be used in a hot-swap or hot-plug application, but it's essential to ensure that the device is properly powered down before the hot-swap or hot-plug event, and that the input signals are properly terminated to prevent damage to the device.
