MAX3397EELA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3397EELA+T - Low Voltage Translator, Bidirectional, 2 Input, 15 ns, 1.65 V to 5.5 V, µDFN-8

Download MAX3397EELA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

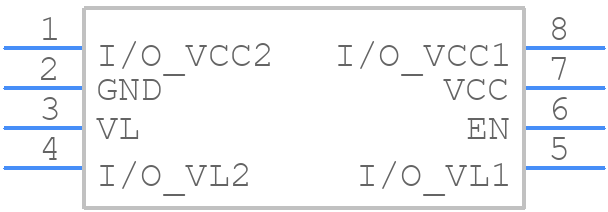

MAX3397EELA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3397EELA+T - Analog Devices PCB footprint - Other - Other - L822+1
click to zoom
3D Models
MAX3397EELA+T - Analog Devices - 3D model - Other - L822+1
click to zoom

MAX3397EELA+T Details

  • Manufacturer Part Number:

    MAX3397EELA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-05-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    1000 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX3397EELA+T Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3397EELA+T is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a common-mode filter or a ferrite bead on the input lines to reduce EMI.
  • The MAX3397EELA+T requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated. Add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins to filter out noise and reduce power supply ripple.
  • The maximum cable length that can be driven by the MAX3397EELA+T depends on the cable type, signal frequency, and termination. As a general rule, the MAX3397EELA+T can drive cables up to 10 meters long at 100Mbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • The MAX3397EELA+T is a general-purpose transceiver that can be configured for various applications. For RS-485, connect the DE (driver enable) pin to the transmit enable signal, and the RE (receiver enable) pin to the receive enable signal. For CAN, connect the DE pin to the transmit enable signal, and the RE pin to the receive enable signal, and use an external CAN transceiver. Consult the datasheet and application notes for specific configuration details.
  • The MAX3397EELA+T has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device's junction temperature below 125°C. Use a thermal pad or a heat sink on the exposed pad to dissipate heat. Consult the datasheet for thermal resistance and power dissipation calculations.
