MAX3420EECJ+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3420EECJ+ - USB Interface, USB Peripheral Controller, USB 2.0, 3 V, 3.6 V, LQFP, 32 Pins

Download MAX3420EECJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

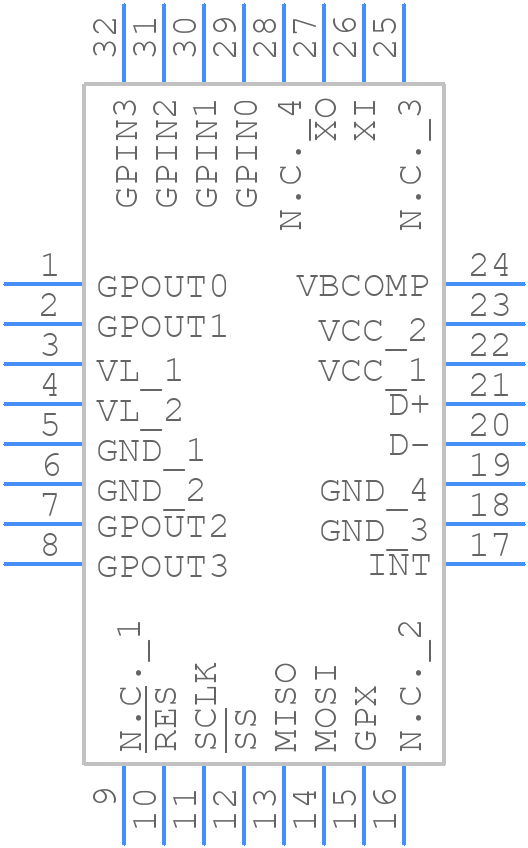

MAX3420EECJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3420EECJ+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - C32+1
click to zoom
3D Models
MAX3420EECJ+ - Analog Devices - 3D model - Quad Flat Packages - C32+1
click to zoom

MAX3420EECJ+ Details

  • Manufacturer Part Number:

    MAX3420EECJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LQFP-7X7X1.4

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LQFP-7X7X1.4

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2005-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; USB; VBUS

  • Clock Frequency-Max:

    12.03 MHz

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
