MAX34406HETG+T - Analog Devices

Description: Current Sense Amplifiers Quad Current-Sense Amplifier with Overcurrent Threshold Comparators 24 TQFN-EP**

Download MAX34406HETG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

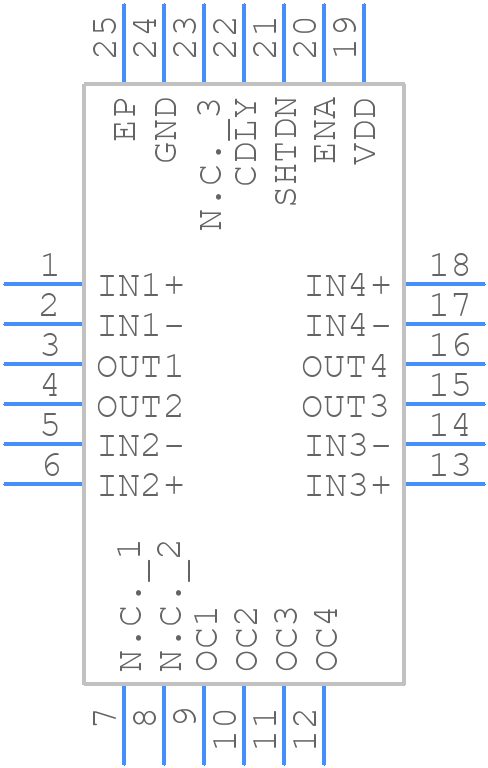

MAX34406HETG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX34406HETG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX34406HETG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX34406HETG+T Details

  • Manufacturer Part Number:

    MAX34406HETG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-06-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX34406HETG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX34406HETG+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensor, and the sensor should be thermally connected to the device being measured.
  • The maximum cable length for remote temperature sensing using the MAX34406HETG+T depends on the cable type, noise environment, and desired accuracy. As a general guideline, a cable length of up to 10 meters is recommended, but it's essential to evaluate the specific application and environment to determine the maximum cable length.
  • Yes, the MAX34406HETG+T is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the device should be evaluated for vibration sensitivity during the design and testing phase.
  • To troubleshoot common issues with the MAX34406HETG+T, start by verifying the power supply, clock, and communication signals. Check the device's configuration and settings, and ensure that the temperature sensor is properly connected and calibrated. Use a logic analyzer or oscilloscope to debug communication issues, and consult the datasheet and application notes for guidance.
