MAX34406TETG+ footprint, schematic symbol and 3D model by Analog Devices

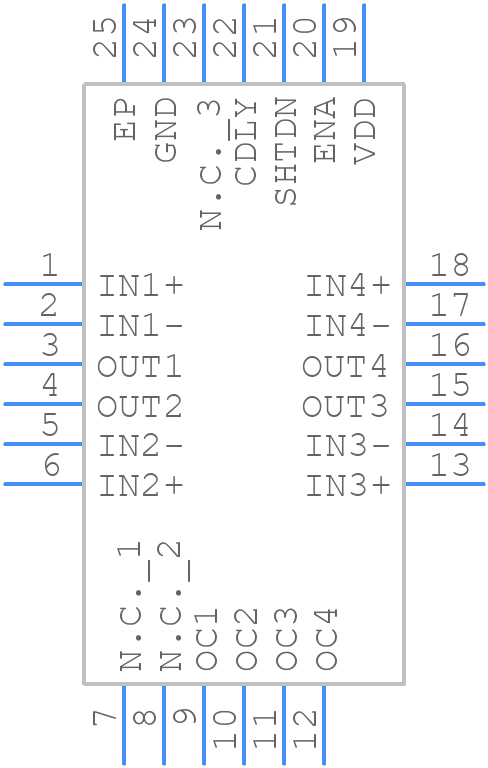

Symbol

click to zoom

PCB Footprints

MAX34406TETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX34406TETG+
Part Number MAX34406TETG+
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - T2444+4
Released Date Mar 12, 2020
Last Modified Date Jul 22, 2026 3:08 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX34406TETG+ Details

Manufacturer Part Number:
MAX34406TETG+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
24-LFCSP-4X4X0.75
Pin Count:
24
Manufacturer Package Code:
24-LFCSP-4X4X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.01
Date Of Intro:
2011-06-28
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-XQCC-N24
JESD-609 Code:
e3
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC24,.16SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.2 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm

MAX34406TETG+ Frequently Asked Questions (FAQs)

A good PCB layout for the MAX34406TETG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power source and use a low-ESR capacitor for the VCC pin.
To ensure the accuracy of the output voltage, it's essential to use high-precision resistors for the feedback network, keep the output voltage within the specified range, and minimize the noise and ripple on the input voltage. Additionally, the device should be operated within the recommended temperature range, and the output voltage should be measured using a high-impedance load.
The MAX34406TETG+ can handle an input voltage up to 5.5V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To troubleshoot issues with the MAX34406TETG+, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the input and output voltages. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
The MAX34406TETG+ is rated for operation up to 125°C, but it's essential to ensure that the device is properly derated for high-temperature operation. Consult the datasheet and application notes for guidance on thermal management and derating.
