MAX34409ETE+ footprint, schematic symbol and 3D model by Analog Devices

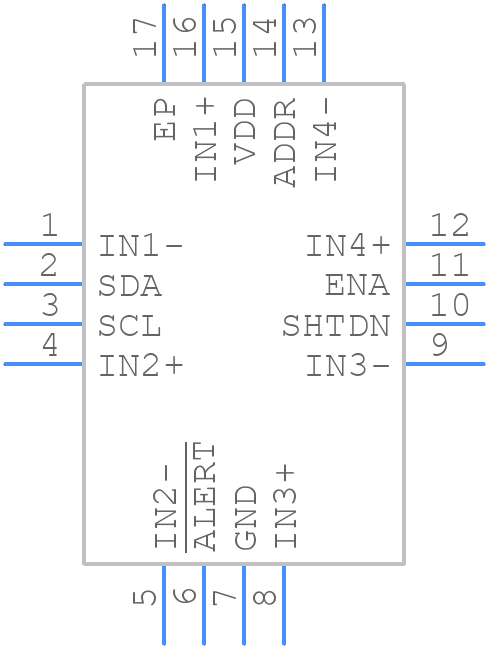

Symbol

click to zoom

PCB Footprints

MAX34409ETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1644+4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX34409ETE+
Part Number MAX34409ETE+
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - T1644+4
Released Date Oct 11, 2019
Last Modified Date Jul 22, 2026 3:56 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX34409ETE+ Details

Manufacturer Part Number:
MAX34409ETE+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-LFCSP-4X4X0.75
Pin Count:
16
Manufacturer Package Code:
16-LFCSP-4X4X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2013-09-27
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
HIGH SIDE POWER/CURRENT MONITOR|
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Time@Peak Reflow Temperature-Max (s):
30

MAX34409ETE+ Frequently Asked Questions (FAQs)

A good PCB layout for the MAX34409ETE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to power up the VCC pin first, followed by the VDD pin. Also, ensure that the EN pin is high during power-up and that the device is in a valid operating mode.
The MAX34409ETE+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
To troubleshoot issues with the MAX34409ETE+, start by checking the power supply and ensuring that the device is properly powered up. Then, verify that the input signals are within the recommended range and that the output signals are as expected. Use an oscilloscope to check for any signal integrity issues or noise. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the MAX34409ETE+ is suitable for high-reliability and safety-critical applications. It has been designed and tested to meet the requirements of various industry standards, including AEC-Q100 and IEC 61508. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MAX34409ETE+ Overview

Use the download button to access the MAX34409ETE+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX34, or try a keyword search, such as Other Signal Circuits
