MAX358CWE+T - Analog Devices

Description: Fault-Protected Analog Multiplexers 0°C to +75° C 16 Lead Wide SO

Download MAX358CWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

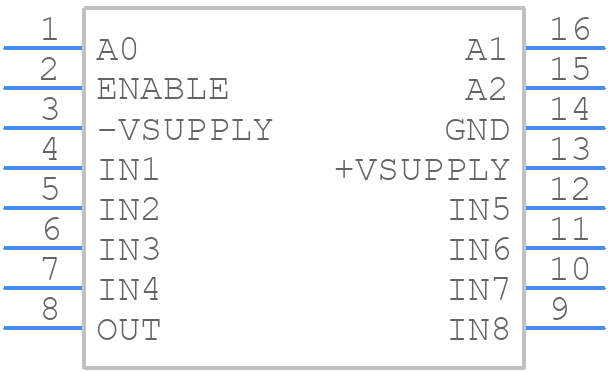

Symbol
MAX358CWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX358CWE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Wide SO
click to zoom
3D Models
MAX358CWE+T - Analog Devices - 3D model - Small Outline Packages - 16 Wide SO
click to zoom

MAX358CWE+T Details

  • Manufacturer Part Number:

    MAX358CWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOP, SOP16,.4

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1988-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance-Max (Ron):

    1800 Ω

  • Operating Temperature-Max:

    75 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    1000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.6745 mm

MAX358CWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX358CWE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for the VCC pin.
  • To ensure proper termination for high-speed signals, use a series resistor (Rs) of 50-75 ohms at the transmitter output, and a parallel terminator (Rt) of 50 ohms at the receiver input. The Rs and Rt values should be chosen based on the specific application and transmission line characteristics.
  • The maximum cable length supported by the MAX358CWE+T depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters at data rates up to 100 Mbps, and up to 50 meters at data rates up to 400 Mbps. However, it's recommended to consult the datasheet and perform simulations to determine the maximum cable length for a specific application.
  • To handle EMI and EMC issues with the MAX358CWE+T, use proper shielding, grounding, and filtering techniques. Ensure that the device is placed in a shielded enclosure, and use EMI filters or common-mode chokes to reduce emissions. Additionally, follow good PCB layout practices, such as keeping sensitive signals away from noisy signals and using guard rings around sensitive components.
  • The recommended power-up sequence for the MAX358CWE+T is to apply the power supply voltage (VCC) first, followed by the digital input signals. This ensures that the device is properly initialized and configured before the digital signals are applied.
