MAX3740AETG+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3740AETG+T - Laser Diode Driver, SFP VCSEL, 3.2Gbps, 2.97V to 3.63V, TQFN-24

Download MAX3740AETG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

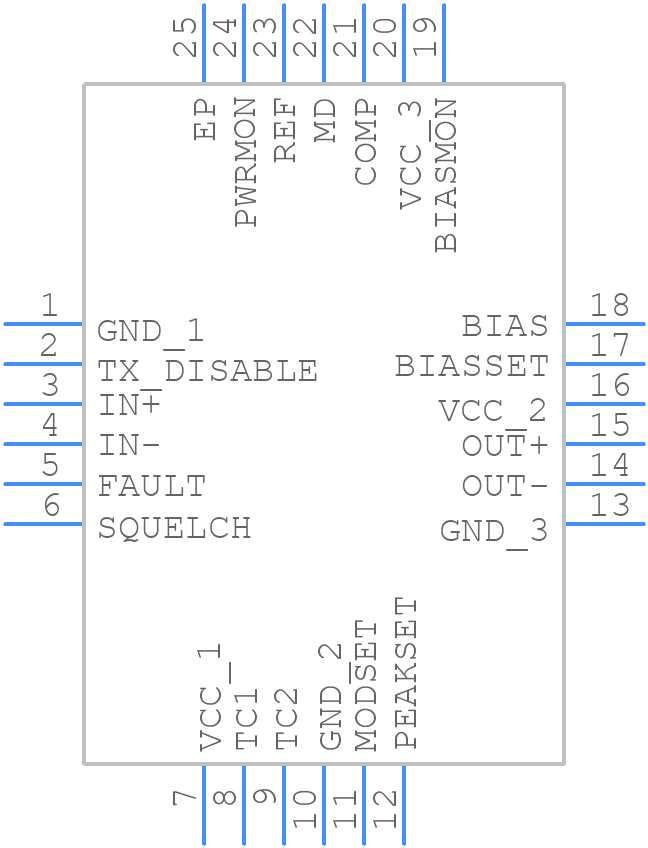

MAX3740AETG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3740AETG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444-4
click to zoom
3D Models
MAX3740AETG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444-4
click to zoom

MAX3740AETG+T Details

  • Manufacturer Part Number:

    MAX3740AETG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    HVQCCN, LCC24,.16SQ,20

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2004-01-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX3740AETG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3740AETG+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX3740AETG+T, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VEE. During power-down, remove VEE first, followed by VCC. Also, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The MAX3740AETG+T has an operating temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX3740AETG+T, start by checking the input voltage, output voltage, and current consumption using an oscilloscope and a multimeter. Verify that the device is properly powered up and powered down, and that the input and output capacitors are properly sized and placed. Also, check for any layout or routing issues that may be causing the problem.
  • Yes, the MAX3740AETG+T is suitable for use in high-reliability or high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of industrial and automotive applications. However, it's recommended to follow proper design and manufacturing guidelines to ensure the device operates reliably in these applications.
