MAX3748HETE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3748HETE+ - LIMITING AMP, 2.97-3.63V, TQFN-16

Download MAX3748HETE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

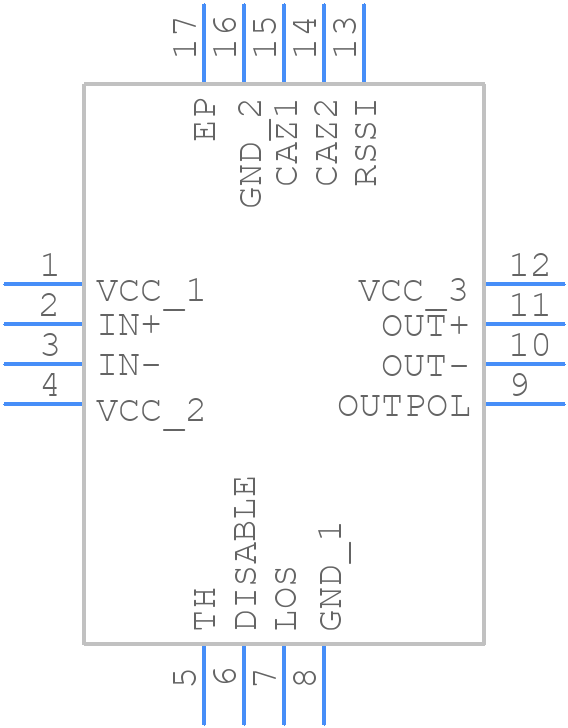

Symbol
MAX3748HETE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3748HETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+5
click to zoom
3D Models
MAX3748HETE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1633+5
click to zoom

MAX3748HETE+ Details

  • Manufacturer Part Number:

    MAX3748HETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Applications:

    ATM; SONET

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.049 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX3748HETE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3748HETE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX3748HETE+, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VEE. During power-down, remove VEE first, followed by VCC. Also, ensure that the input voltage ramps up and down slowly to prevent latch-up.
  • The MAX3748HETE+ can support data rates up to 3.2Gbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and testing to determine the maximum data rate for a specific design.
  • The MAX3748HETE+ has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or a thermal pad, and ensure good airflow around the device. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
  • The MAX3748HETE+ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment.
