MAX3748HETE+T - Analog Devices

Description: Compact 155Mbps to 4.25Gbps Limiting Amplifier

Download MAX3748HETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

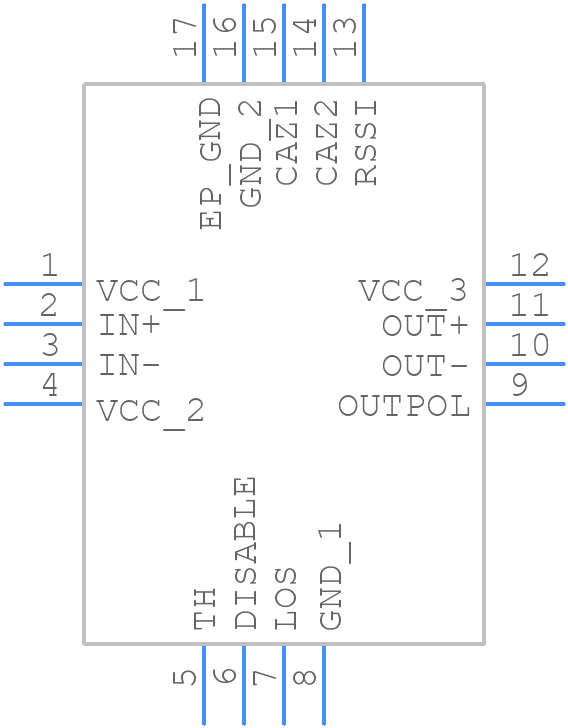

MAX3748HETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3748HETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633-5
click to zoom
3D Models
MAX3748HETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633-5
click to zoom

MAX3748HETE+T Details

  • Manufacturer Part Number:

    MAX3748HETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    QCCN, LCC16,.12SQ,20

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    49 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX3748HETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3748HETE+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX3748HETE+T, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VEE. During power-down, remove VEE first, followed by VCC. Also, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The MAX3748HETE+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX3748HETE+T, start by checking the power supply voltages, input and output signals, and decoupling capacitors. Use an oscilloscope to verify the signal integrity and check for any signs of oscillation or ringing. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • Yes, the MAX3748HETE+T is suitable for high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of automotive, industrial, and medical applications. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
