MAX3841ETG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3841ETG+ - Crosspoint Switch, 2x2 Array, Serial, +3 V to +3.6 V, TQFN-24

Download MAX3841ETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

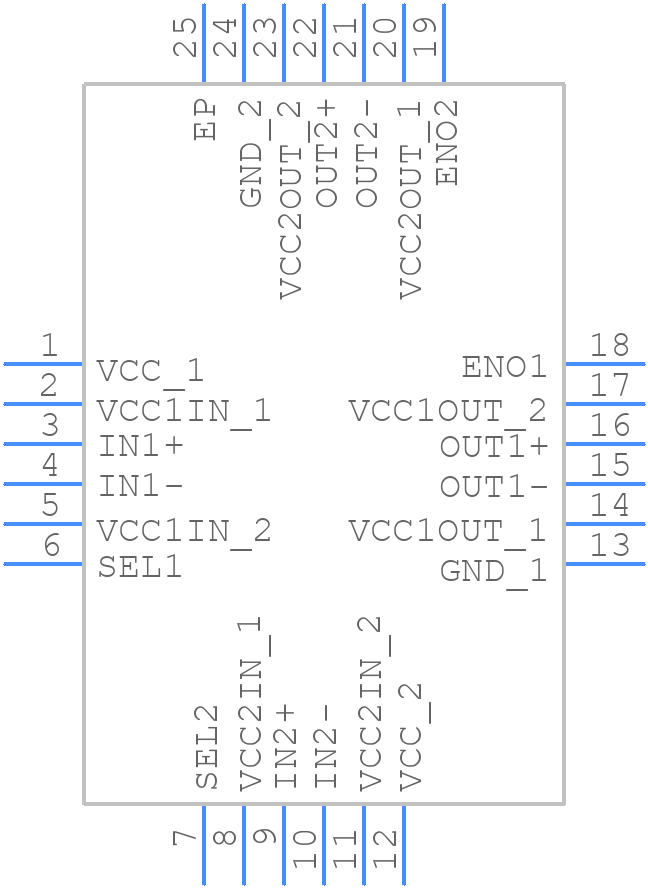

Symbol
MAX3841ETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3841ETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+3
click to zoom
3D Models
MAX3841ETG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+3
click to zoom

MAX3841ETG+ Details

  • Manufacturer Part Number:

    MAX3841ETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-08-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    90 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    0.03 ns

  • Switch-on Time-Max:

    0.03 ns

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX3841ETG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3841ETG+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the MAX3841ETG+ operates within its specified temperature range, provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
  • The recommended input capacitor value for the MAX3841ETG+ is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation.
  • Yes, the MAX3841ETG+ is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, additional testing and validation may be required to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the MAX3841ETG+, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Check for overheating, and ensure that the device is operated within its specified temperature range. Consult the datasheet and application notes for additional troubleshooting guidance.
