MAX38889AATE+T footprint, schematic symbol and 3D model by Analog Devices

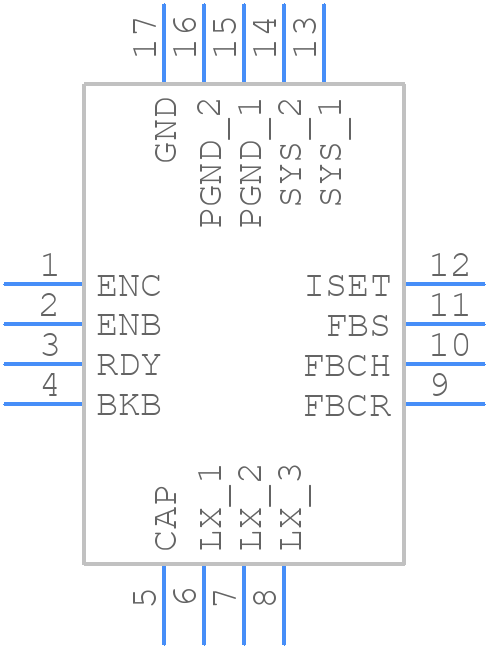

Symbol

click to zoom

PCB Footprints

MAX38889AATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+5C

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX38889AATE+T
Part Number MAX38889AATE+T
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - T1633+5C
Released Date Apr 19, 2023
Last Modified Date Jun 11, 2026 9:11 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX38889AATE+T Details

Manufacturer Part Number:
MAX38889AATE+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-LFCSP-3X3X0.75
Package Description:
TQFN-16
Pin Count:
16
Manufacturer Package Code:
16-LFCSP-3X3X0.75
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2021-04-21
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE FREQUENCY MODULATION
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
2.5 V
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC16,.12SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
1200 kHz
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

MAX38889AATE+T Frequently Asked Questions (FAQs)

A good PCB layout is crucial for the MAX38889AATE+T. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure accuracy, it's essential to follow proper calibration procedures, use a high-accuracy voltage reference, and minimize noise and interference on the input lines. Additionally, consider using a Kelvin connection to the voltage source to reduce measurement errors.
The MAX38889AATE+T is designed to handle a maximum current of 1A. Exceeding this current limit can cause damage to the device. It's essential to ensure that the input current is within the specified range to maintain device reliability and accuracy.
The MAX38889AATE+T is rated for operation up to 125°C. However, it's essential to consider the device's thermal characteristics, including thermal resistance and power dissipation, to ensure reliable operation in high-temperature environments.
To troubleshoot issues, start by reviewing the datasheet and application notes to ensure proper device configuration and operation. Check for proper power supply, input signal integrity, and output loading. Use oscilloscopes and other diagnostic tools to identify and isolate the problem.
