MAX38904BATD+T - Analog Devices

Description: LDO Voltage Regulators 2A Low Noise LDO Linear Regulator

Download MAX38904BATD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

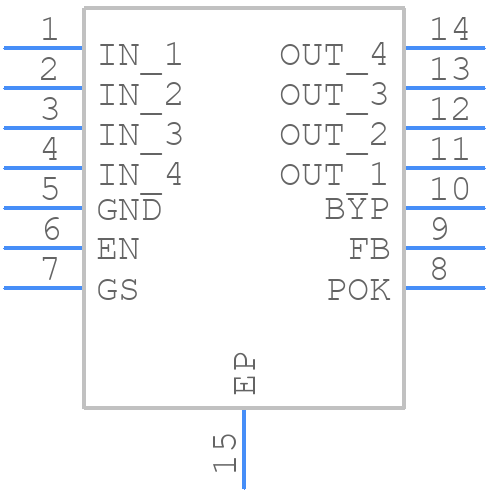

MAX38904BATD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX38904BATD+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433+2C
click to zoom
3D Models
MAX38904BATD+T - Analog Devices - 3D model - Small Outline No-lead - T1433+2C
click to zoom

MAX38904BATD+T Details

  • Manufacturer Part Number:

    MAX38904BATD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-02-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.02

  • Load Regulation-Max(%):

    0.032%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX38904BATD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX38904BATD+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and power-down of the MAX38904BATD+T, it's essential to follow a controlled power-up sequence. Apply power to the VCC pin first, followed by the EN pin. During power-down, remove power from the EN pin first, then the VCC pin. Additionally, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The MAX38904BATD+T has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • To troubleshoot issues with the MAX38904BATD+T, start by verifying the input voltage, output voltage, and enable pin voltage using an oscilloscope or multimeter. Check for proper PCB layout, decoupling, and component selection. Consult the datasheet and application notes for guidance on troubleshooting common issues. If the problem persists, contact Analog Devices Inc. support for further assistance.
  • Yes, the MAX38904BATD+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended operating conditions, PCB layout, and component selection guidelines to ensure the device operates within its specifications.
