MAX38907ATP+ - Analog Devices

Description: 4A High-Performance LDO Linear Regulators

Download MAX38907ATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

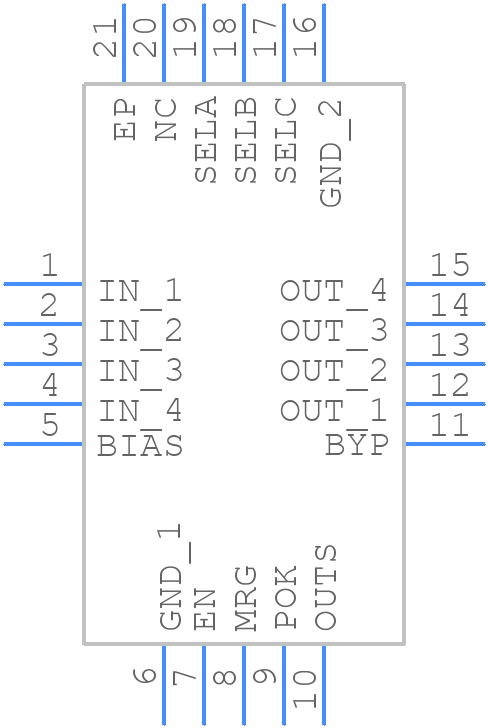

MAX38907ATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX38907ATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+4C
click to zoom
3D Models
MAX38907ATP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2055+4C
click to zoom

MAX38907ATP+ Details

  • Manufacturer Part Number:

    MAX38907ATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-10-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.04

  • Load Regulation-Max(%):

    0.1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    4 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX38907ATP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX38907ATP+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX38907ATP+, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VDD, and then the input signal. During power-down, remove the input signal first, followed by VDD, and then VCC.
  • The MAX38907ATP+ has an operating temperature range of -40°C to +125°C, but it's recommended to operate it within -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX38907ATP+, start by checking the power supply voltages, input signal integrity, and output signal quality. Use an oscilloscope to visualize the signals and look for any signs of oscillation, noise, or distortion. Also, check the PCB layout and ensure that it meets the recommended layout guidelines.
  • Yes, the MAX38907ATP+ is suitable for high-reliability and high-availability applications due to its high MTBF (mean time between failures) and low FIT (failure in time) rate. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device operates within its specified parameters.
