MAX38912ATA+T - Analog Devices

Description: 11?VRMS Low-Noise, 500mA LDO Linear Regulators with Low-Power Mode

Download MAX38912ATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

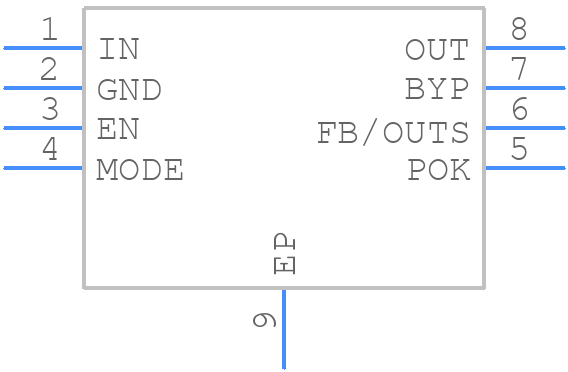

MAX38912ATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX38912ATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+3C
click to zoom
3D Models
MAX38912ATA+T - Analog Devices - 3D model - Small Outline No-lead - T822+3C
click to zoom

MAX38912ATA+T Details

  • Manufacturer Part Number:

    MAX38912ATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-02-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.068

  • Load Regulation-Max(%):

    0.078%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX38912ATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX38912ATA+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX38912ATA+T, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VDD, and then the input signal. During power-down, remove the input signal first, followed by VDD, and then VCC.
  • The MAX38912ATA+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX38912ATA+T, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the power supply is clean and stable, and that the input signal is within the recommended specifications. Use an oscilloscope to measure the output signal and look for signs of oscillation or instability.
  • Yes, the MAX38912ATA+T is suitable for high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of demanding applications such as industrial, medical, and aerospace.
