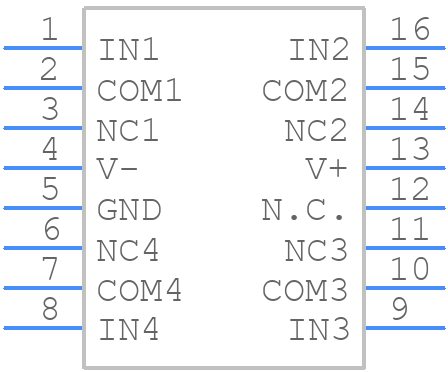

MAX391CPE+ - Analog Devices

MAX391CPE+ Details

• Manufacturer Part Number:

  MAX391CPE+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  16-PDIP-300_MIL

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-PDIP-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-05-03

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  ALSO OPERATE WITH 3 V TO 15 V SINGLE SUPPLY

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  19.175 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -8 V

• Neg Supply Voltage-Min (Vsup):

  -3 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Normal Position:

  NC

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  72 dB

• On-state Resistance Match-Nom:

  0.3 Ω

• On-state Resistance-Max (Ron):

  35 Ω

• Operating Temperature-Max:

  70 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.001 mA

• Supply Voltage-Max (Vsup):

  8 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  75 ns

• Switch-on Time-Max:

  130 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.62 mm
