HTS Code:
8542.39.00.60
Date Of Intro:
2000-05-03
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SPST
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-8 V
Neg Supply Voltage-Min (Vsup):
-3 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Normal Position:
NO/NC
Number of Functions:
4
Number of Terminals:
16
Off-state Isolation-Nom:
72 dB
On-state Resistance Match-Nom:
0.3 Ω
On-state Resistance-Max (Ron):
35 Ω
Operating Temperature-Max:
70 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Signal Current-Max:
0.03 A
Supply Current-Max (Isup):
0.001 mA
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
75 ns
Switch-on Time-Max:
130 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
MAX393CSE+ Frequently Asked Questions (FAQs)
A good PCB layout for the MAX393CSE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The VCC pin should be decoupled with a 0.1uF ceramic capacitor to the GND pin. Additionally, the input pins (VIN+ and VIN-) should be biased to a voltage within the common-mode range of the device.
The MAX393CSE+ can handle input voltages up to ±25V, but the device is only specified to operate with input voltages up to ±15V. Exceeding the maximum input voltage can cause damage to the device.
To filter out noise and ripple on the input signal, use a low-pass filter (e.g. an RC filter) with a cutoff frequency below the frequency of interest. Additionally, use a high-quality, low-ESR capacitor to decouple the input pins to the GND pin.
The output impedance of the MAX393CSE+ is typically around 100 ohms. This means that the device can drive a load impedance of up to 1kohm without significant signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX393CSE+ Overview

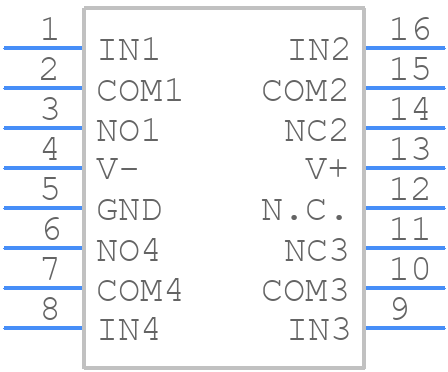

Use the download button to access the MAX393CSE+ schematic symbol, PCB footprint, and 3D model.
