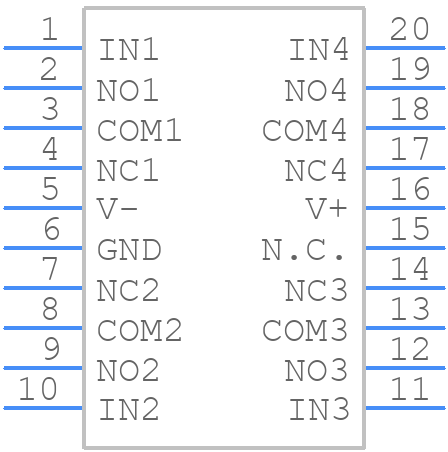

MAX394MWP/PR - Analog Devices

MAX394MWP/PR Details

• Manufacturer Part Number:

  MAX394MWP/PR

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Neg Supply Voltage-Max (Vsup):

  -8 V

• Neg Supply Voltage-Min (Vsup):

  -2.7 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  20

• Off-state Isolation-Nom:

  66 dB

• On-state Resistance Match-Nom:

  0.5 Ω

• On-state Resistance-Max (Ron):

  45 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Seated Height-Max:

  2.65 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.001 mA

• Supply Voltage-Max (Vsup):

  8 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  100 ns

• Switch-on Time-Max:

  175 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
