MAX40018ATA+T - Analog Devices

Description: Operational Amplifiers - Op Amps Dual Nanopower Op Amp with Very Low Input Bias Current

Download MAX40018ATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

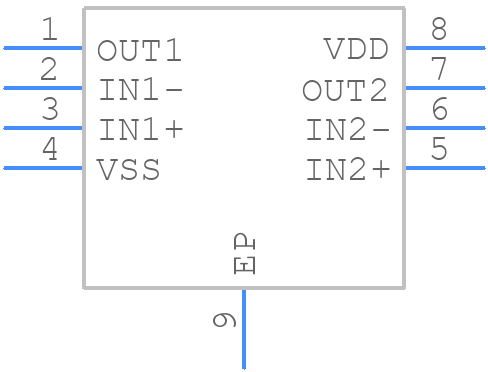

MAX40018ATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40018ATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 TDFN T833+2
click to zoom
3D Models
MAX40018ATA+T - Analog Devices - 3D model - Small Outline No-lead - 8 TDFN T833+2
click to zoom

MAX40018ATA+T Details

  • Manufacturer Part Number:

    MAX40018ATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-04-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.0064 V/us

  • Supply Current-Max:

    0.0016 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    9

  • Voltage Gain-Min:

    5623.41

  • Wideband:

    NO

  • Width:

    3 mm

MAX40018ATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40018ATA+T involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and electromagnetic interference (EMI).
  • The input capacitor value for the MAX40018ATA+T depends on the input signal frequency and amplitude. A general rule of thumb is to choose a capacitor value that is at least 10 times the input signal frequency. For example, for a 100 kHz input signal, a 1 μF capacitor would be a good starting point. However, it's recommended to consult the datasheet and application notes for more specific guidance.
  • The MAX40018ATA+T has an operating temperature range of -40°C to +125°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Consult the datasheet for more information on temperature derating.
  • Yes, the MAX40018ATA+T is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process and is qualified to various industry standards, including MIL-STD-883 and AEC-Q100. However, it's recommended to consult with Analog Devices Inc. for specific qualification and testing requirements.
  • Common issues with the MAX40018ATA+T can often be troubleshooted by checking the input signal quality, ensuring proper PCB layout and decoupling, and verifying the output voltage using an oscilloscope or multimeter. Consult the datasheet and application notes for more specific troubleshooting guidance.
