MAX4053ACSE+ - Analog Devices

Description: MAX4053ACSE+, Multiplexer Triple SPDT, 12 V, 15 V, 3 V, 5 V, 9 V, 16-Pin, SOIC, 3

Download MAX4053ACSE+ Model

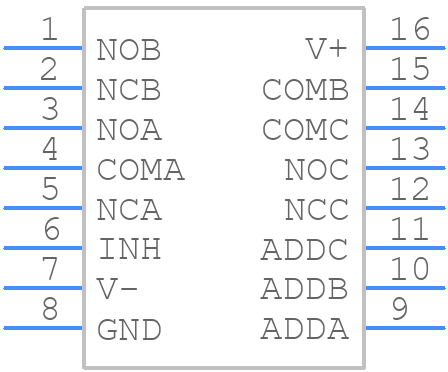

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

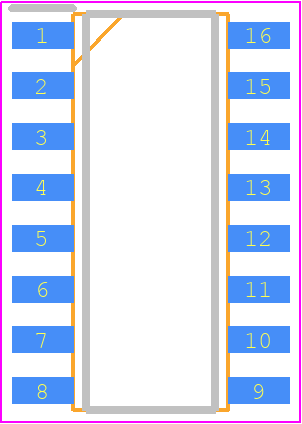

MAX4053ACSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX4053ACSE+ - Analog Devices  - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX4053ACSE+ Details

  • Manufacturer Part Number:

    MAX4053ACSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012C, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    6 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4053ACSE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4053ACSE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX4053ACSE+, make sure to follow the recommended power-up sequence, which is to apply VCC before applying input signals. During power-down, remove input signals before removing VCC. Also, ensure that the power supply is stable and within the recommended operating range.
  • The MAX4053ACSE+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To handle ESD protection for the MAX4053ACSE+, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Also, ensure that the PCB design includes ESD protection devices, such as TVS diodes or ESD protection arrays, on the input and output lines.
  • The recommended input impedance for the MAX4053ACSE+ is 50Ω. However, the device can operate with input impedances up to 100Ω, but this may affect the device's performance and accuracy.
