Part Image

MAX40659ETA+ - Analog Devices

Description: ● 45nARMS Noise ● Two Transimpedance Values Available • 18kΩ (MAX40658) • 36kΩ (MAX40659) ● 360MHz Minimum Bandwidth ● Internal Clamp For Input Current Up To 100mA ● Offset Adjust Input ● 70mW Power Dissipation ● 3.3V Operation

Download MAX40659ETA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

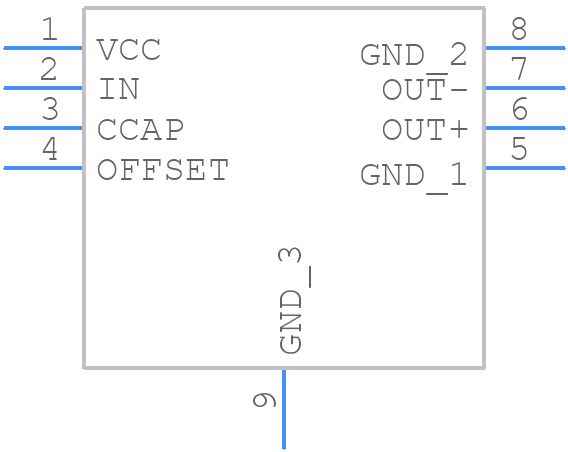

MAX40659ETA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40659ETA+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-TDFN
click to zoom
3D Models
MAX40659ETA+ - Analog Devices - 3D model - Small Outline No-lead - 8-TDFN
click to zoom

MAX40659ETA+ Details

  • Manufacturer Part Number:

    MAX40659ETA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-10-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    36 mA

  • Supply Voltage Limit-Max:

    4.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    520000

  • Wideband:

    NO

  • Width:

    3 mm

MAX40659ETA+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX40659ETA+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Refer to the application note AN-1077 for more detailed guidelines.
  • Select input and output capacitors with low equivalent series resistance (ESR) and high ripple current ratings. A 10uF to 22uF ceramic capacitor is recommended for the input, and a 10uF to 47uF ceramic or electrolytic capacitor for the output. Ensure the capacitors are rated for the maximum operating voltage and temperature range.
  • The MAX40659ETA+ can tolerate up to 10% of the input voltage as ripple. However, it's recommended to keep the input voltage ripple below 5% to ensure optimal performance and minimize output voltage noise.
  • The MAX40659ETA+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management, such as heat sinking and airflow, to maintain a safe operating temperature.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the input and output capacitors are properly selected and connected. Use an oscilloscope to measure the output voltage and input voltage ripple. Consult the datasheet and application notes for more detailed troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX40659ETA+ Overview

Use the download button to access the MAX40659ETA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX40, or try a keyword search, such as Operational Amplifiers
