MAX40660ATB/VY+ - Analog Devices

Description: Transimpedance Amplifiers Automotive Transimpedance Amplifier

Download MAX40660ATB/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

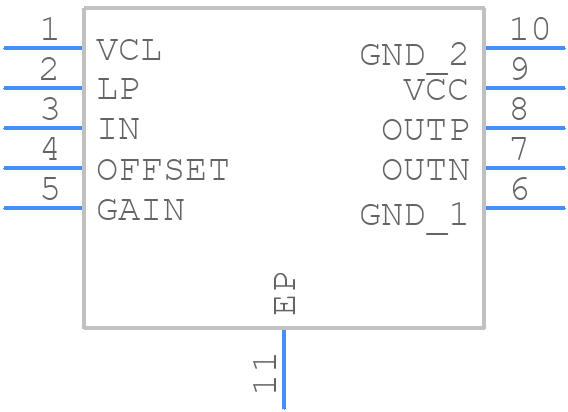

MAX40660ATB/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40660ATB/VY+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn11
click to zoom
3D Models
MAX40660ATB/VY+ - Analog Devices - 3D model - Small Outline No-lead - dfn11
click to zoom

MAX40660ATB/VY+ Details

  • Manufacturer Part Number:

    MAX40660ATB/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP_SS-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP_SS-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX40660ATB/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40660ATB/VY+ should ensure that the input and output traces are separated, and the power supply traces are wide and short. Additionally, it's recommended to use a solid ground plane and to place the device close to the power supply decoupling capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • To ensure proper power-up and power-down of the MAX40660ATB/VY+, it's recommended to follow a controlled power-up sequence, where the power supply voltage (VCC) is applied before the input signals. During power-down, the input signals should be removed before the power supply voltage is removed. Additionally, it's recommended to use a power-on reset (POR) circuit to ensure the device is properly reset during power-up.
  • The MAX40660ATB/VY+ has a high-impedance input, so it's recommended to use a low-impedance signal source, such as a voltage follower or a buffer amplifier, to drive the input signals. Additionally, it's recommended to use a series resistor and a shunt capacitor to filter out high-frequency noise and to reduce the input signal amplitude to within the specified range.
  • To troubleshoot common issues with the MAX40660ATB/VY+, it's recommended to check the power supply voltage and ensure it's within the specified range. Also, check the input signal amplitude and frequency to ensure they are within the specified range. Additionally, check the PCB layout and ensure that it's following the recommended layout guidelines. If the issue persists, it's recommended to consult the device's application note and to contact Analog Devices' technical support.
  • The MAX40660ATB/VY+ has a high power dissipation, so it's recommended to use a heat sink or a thermal pad to dissipate the heat. Additionally, it's recommended to ensure good airflow around the device and to avoid blocking the airflow with other components or obstacles. The device's thermal pad should be connected to a solid ground plane to ensure good heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX40660ATB/VY+ Overview

Use the download button to access the MAX40660ATB/VY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX40, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
