MAX40662ATE/VY+ - Analog Devices

Description: Transimpedance Amplifiers Low Noise, High Gain Quad Channel Transimpedance Amplifer

Download MAX40662ATE/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

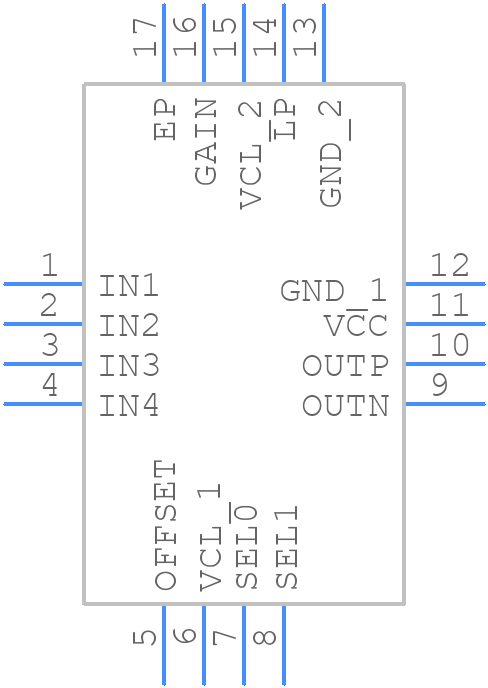

MAX40662ATE/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40662ATE/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1644Y+5C
click to zoom
3D Models
MAX40662ATE/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - T1644Y+5C
click to zoom

MAX40662ATE/VY+ Details

  • Manufacturer Part Number:

    MAX40662ATE/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP_SS-4X4X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP_SS-4X4X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Supply Current-Max:

    76 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    4 mm

MAX40662ATE/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40662ATE/VY+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX40662ATE/VY+ operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W and ensuring good airflow around the device.
  • The recommended input capacitance for the MAX40662ATE/VY+ is 10nF to 100nF, and the recommended output capacitance is 10nF to 1μF. However, the optimal capacitance values may vary depending on the specific application and operating frequency.
  • To troubleshoot common issues with the MAX40662ATE/VY+, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output capacitance values are within the recommended range. If the issue persists, check for any signs of overheating, and ensure that the device is operated within its specified temperature range.
  • Yes, the MAX40662ATE/VY+ can be used in a switching regulator application, but it's essential to ensure that the device is operated within its specified frequency range and that the output is properly filtered to prevent high-frequency noise from affecting the regulator's performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX40662ATE/VY+ Overview

Use the download button to access the MAX40662ATE/VY+ schematic symbol, PCB footprint, and 3D model.
