MAX4172ESA+T - Analog Devices

Description: Low-Cost, Precision, High-Side Current-Sense Amplifier

Download MAX4172ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

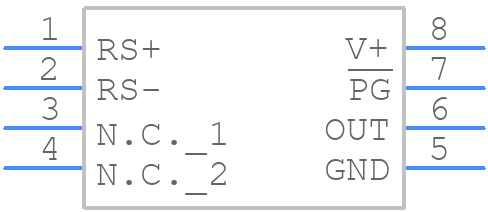

MAX4172ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4172ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+4
click to zoom
3D Models
MAX4172ESA+T - Analog Devices - 3D model - Small Outline Packages - S8+4
click to zoom

MAX4172ESA+T Details

  • Manufacturer Part Number:

    MAX4172ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-12-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4172ESA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX4172ESA+T involves keeping the input traces as short as possible, using a ground plane to reduce noise, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the MAX4172ESA+T in a noisy environment, use shielding, filtering, and grounding techniques to reduce electromagnetic interference (EMI). Additionally, use a low-pass filter at the input to remove high-frequency noise, and consider using a differential input configuration to reject common-mode noise.
  • The maximum input voltage that the MAX4172ESA+T can handle is ±25V, but it's recommended to limit the input voltage to ±20V to ensure reliable operation and prevent damage to the device.
  • Calibration of the MAX4172ESA+T involves adjusting the gain and offset of the device to match the specific application requirements. This can be done using external resistors and voltage references, or by using a calibration routine in the microcontroller or FPGA that interfaces with the MAX4172ESA+T.
  • The typical settling time of the MAX4172ESA+T is around 10µs to 20µs, depending on the input signal frequency and amplitude. However, this can vary depending on the specific application and layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4172ESA+T Overview

Use the download button to access the MAX4172ESA+T schematic symbol, PCB footprint, and 3D model.
