MAX4173TESA+T - Analog Devices

Description: Low-Cost, Compact Current-Sense Solution ♦ High Accuracy +2V to +28V Common-Mode Range, Functional Down to 0V, Independent of Supply Voltage ♦ Three Gain Versions Available +20V/V (MAX4173T) +50V/V (MAX4173F) +100V/V (MAX4173H) ♦ ±0.5% Full-Scale Accuracy ♦ ±3mV Input Offset Voltage (MAX4173T) ♦ Wide 1.7MHz Bandwidth (MAX4173T) ♦ 420µA Supply Current ♦ Available in Space-Saving SOT23 Package

Download MAX4173TESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

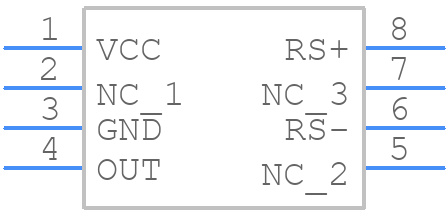

MAX4173TESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4173TESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX4173TESA+T - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX4173TESA+T Details

  • Manufacturer Part Number:

    MAX4173TESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-02-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4173TESA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4173TESA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal source. Additionally, use short traces and avoid routing digital signals near the analog inputs.
  • To ensure accuracy, calibrate the device using a precision temperature source, and ensure that the thermistor is properly connected and not subject to self-heating. Also, use a low-noise power supply and avoid electromagnetic interference.
  • The maximum cable length depends on the specific application and the type of cable used. However, as a general rule, keep the cable length as short as possible (less than 10 feet) to minimize noise and signal attenuation. Use shielded cables and twisted pairs to reduce electromagnetic interference.
  • The MAX4173TESA+T is rated for operation up to 125°C, but it's not recommended for use in high-temperature applications above 100°C without proper heat sinking and thermal management. Consult the datasheet and application notes for specific guidance.
  • Start by checking the power supply voltage, ensuring it's within the recommended range. Verify that the thermistor is properly connected and not damaged. Check for noise and electromagnetic interference, and ensure that the device is properly grounded. Consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4173TESA+T Overview

Use the download button to access the MAX4173TESA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX41, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
