MAX4206ETE+T - Analog Devices

Description: Logarithmic Amplifiers Precision Transimpedance Logarithmic Amplifier with Over 5 Decades of Dynamic Range

Download MAX4206ETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

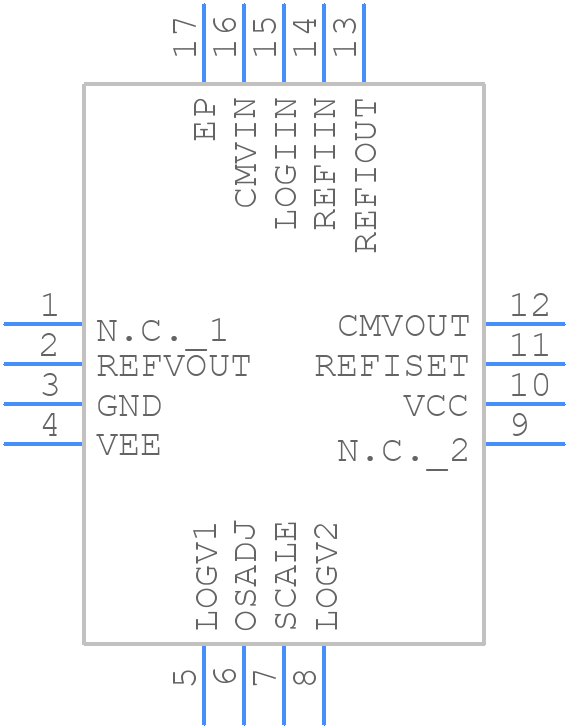

MAX4206ETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4206ETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1644+4
click to zoom
3D Models
MAX4206ETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1644+4
click to zoom

MAX4206ETE+T Details

  • Manufacturer Part Number:

    MAX4206ETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.8 MM HEIGHT, MO-220-WGGC, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-4X4X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2004-01-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    BUFFER

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    12 V/us

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX4206ETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4206ETE+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure stability, make sure to follow the recommended component values and PCB layout. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be decoupled from the power supply with a 10uF capacitor. If oscillations occur, try adding a 10Ω resistor in series with the output.
  • The maximum power dissipation of the MAX4206ETE+T is dependent on the operating temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C. However, this can be derated to 0.8W at 85°C. It's essential to ensure proper thermal management to prevent overheating.
  • The MAX4206ETE+T is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and ensure proper thermal management to prevent overheating. If high-temperature operation is required, consider using a thermally enhanced package or a heat sink.
  • To troubleshoot issues with the MAX4206ETE+T, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals using an oscilloscope to identify any anomalies. Also, ensure that the device is properly decoupled from the power supply and that the PCB layout is correct. If issues persist, consult the datasheet and application notes or contact Analog Devices' technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4206ETE+T Overview

Use the download button to access the MAX4206ETE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX42, or try a keyword search, such as Analog Computational Functions
