MAX4209HAUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4209HAUA+ - INSTR AMPLIFIER, 750KHZ, 135DB, UMAX-8

Download MAX4209HAUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

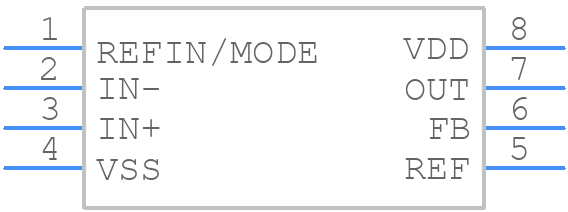

Symbol
MAX4209HAUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4209HAUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX4209HAUA+
click to zoom
3D Models
MAX4209HAUA+ - Analog Devices - 3D model - Small Outline Packages - MAX4209HAUA+
click to zoom

MAX4209HAUA+ Details

  • Manufacturer Part Number:

    MAX4209HAUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2007-10-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    BUFFER

  • Input Offset Voltage-Max:

    40 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    80000 V/us

  • Supply Current-Max:

    2.3 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4209HAUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4209HAUA+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • The MAX4209HAUA+ requires a dual supply voltage (VCC and VEE) for proper operation. Ensure that VCC is between 2.7V and 5.5V, and VEE is between -2.7V and -5.5V. The input common-mode voltage should be within 1V of the positive supply rail (VCC) for optimal performance.
  • The MAX4209HAUA+ can handle input voltages up to ±6V beyond the supply rails (VCC and VEE) without damage. However, the device is only specified to operate with input voltages within the range of VCC - 0.1V to VCC + 0.1V and VEE - 0.1V to VEE + 0.1V.
  • To reduce noise and oscillations, ensure that the input and output traces are properly terminated, and use decoupling capacitors (e.g., 10nF to 100nF) close to the device. Additionally, use a low-pass filter or a ferrite bead in series with the input signal to filter out high-frequency noise.
  • While the MAX4209HAUA+ is typically used in a dual-supply configuration, it can be used in a single-supply configuration with some limitations. In this case, the input common-mode voltage should be within 1V of the positive supply rail (VCC), and the output voltage swing will be reduced. Refer to the application note AN-1149 for more details.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4209HAUA+ Overview

Use the download button to access the MAX4209HAUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX42, or try a keyword search, such as Buffer Amplifiers
