MAX4233ABC+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4233ABC+T - Operational Amplifier, Rail to Rail Output, 2 Amplifier, 10 MHz, 10 V/µs

Download MAX4233ABC+T Model

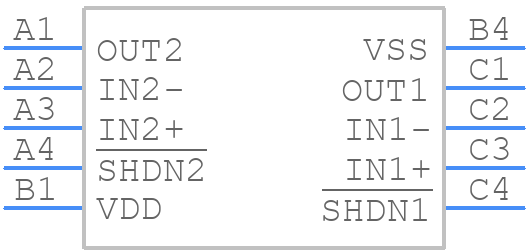

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX4233ABC+T - Analog Devices PCB footprint - BGA - BGA - B12+4_2020
click to zoom

MAX4233ABC+T Details

  • Manufacturer Part Number:

    MAX4233ABC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    12-WLCSP

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2002-03-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00055 µA

  • Bias Current-Max (IIB) @25C:

    1e-7 µA

  • Common-mode Reject Ratio-Min:

    46 dB

  • Common-mode Reject Ratio-Nom:

    46 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PBGA-B10

  • JESD-609 Code:

    e1

  • Length:

    2.02 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA10,3X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.67 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    5.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    2240

  • Wideband:

    NO

  • Width:

    1.54 mm

MAX4233ABC+T Frequently Asked Questions (FAQs)

  • The MAX4233ABC+T is a high-frequency device, so it's essential to follow good high-frequency PCB design practices. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. Place the device close to the signal source, and use a low-ESR capacitor for the bypass pin.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the input and output capacitors are properly selected and placed. If you're still experiencing oscillation, try adding a small series resistor (e.g., 10Ω) at the output to dampen the oscillation.
  • The MAX4233ABC+T has an absolute maximum input voltage rating of 6V. However, the recommended operating input voltage range is from 0.5V to 5.5V. Exceeding the absolute maximum rating can damage the device.
  • Yes, the MAX4233ABC+T can be used as a unity-gain buffer. However, keep in mind that the device has a gain bandwidth product of 100MHz, so it's not suitable for very high-frequency applications. Also, ensure that the input and output impedances are properly matched to avoid signal reflections.
  • The power dissipation of the MAX4233ABC+T can be calculated using the formula: Pd = (Vcc x Icc) + (Vin x Iin), where Vcc is the supply voltage, Icc is the quiescent current, Vin is the input voltage, and Iin is the input current. Make sure to check the datasheet for the specific values of these parameters.
