MAX4312ESE+ - Analog Devices

Description: MAX4312ESE+, Multiplexer Single 8:1, 5 V, 9 V, 16-Pin, SOIC, 1

Download MAX4312ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

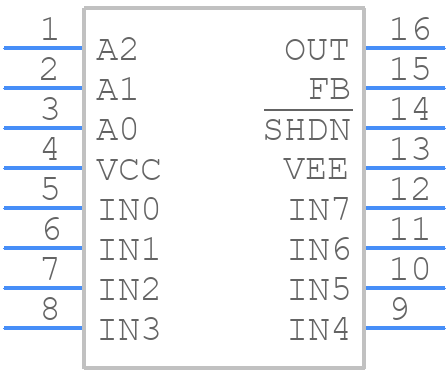

MAX4312ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4312ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+5-2020
click to zoom
3D Models
MAX4312ESE+ - Analog Devices - 3D model - Small Outline Packages - S16+5-2020
click to zoom

MAX4312ESE+ Details

  • Manufacturer Part Number:

    MAX4312ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-07-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    82 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.12 A

  • Supply Current-Max (Isup):

    9.4 mA

  • Supply Voltage-Max (Vsup):

    10.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4312ESE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX4312ESE+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure stability, make sure to follow the recommended layout and placement, use a minimum output capacitance of 10uF, and ensure that the input voltage is within the recommended range. Also, avoid using long input traces and keep the input and output traces separate.
  • The maximum input voltage that the MAX4312ESE+ can handle is 42V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 36V for optimal performance and reliability.
  • The MAX4312ESE+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or thermal management system for high-temperature applications.
  • The output voltage of the MAX4312ESE+ can be calculated using the formula: VOUT = (VIN x R1) / (R1 + R2), where VIN is the input voltage, R1 is the feedback resistor, and R2 is the divider resistor. Refer to the datasheet for more details on the calculation and resistor selection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4312ESE+ Overview

Use the download button to access the MAX4312ESE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX43, or try a keyword search, such as Multiplexers or Switches
