MAX4381EUB+ - Analog Devices

Description: MAX4381EUB+ Maxim, Op Amp, 210MHz 10 MHz, 4.5 → 11 V, 10-Pin µMAX

Download MAX4381EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

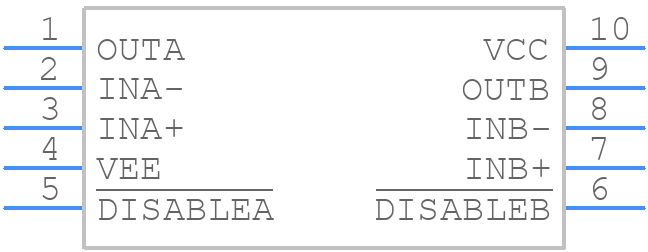

MAX4381EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4381EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX4381EUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX4381EUB+ Details

  • Manufacturer Part Number:

    MAX4381EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO, SOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2001-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    25 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    24000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    485 V/us

  • Supply Current-Max:

    20 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    251.8

  • Wideband:

    YES

  • Width:

    3 mm

MAX4381EUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4381EUB+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and electromagnetic interference (EMI).
  • The choice of input and output capacitors for the MAX4381EUB+ depends on the specific application and operating conditions. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input and output capacitors. The capacitor values should be chosen based on the desired cutoff frequency and the impedance of the input and output signals.
  • The MAX4381EUB+ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To ensure the MAX4381EUB+ is properly biased and configured, refer to the datasheet and application notes provided by Analog Devices Inc. The datasheet provides detailed information on the device's pinout, operating conditions, and recommended biasing and configuration. Additionally, it's recommended to consult with experienced engineers or seek technical support from Analog Devices Inc. if you're unsure about the device's configuration and biasing.
  • The MAX4381EUB+ is a high-speed, low-power op-amp that can be used in a variety of applications, including audio and video signal processing, data acquisition systems, medical devices, and industrial control systems. It's particularly well-suited for applications that require high bandwidth, low noise, and low power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4381EUB+ Overview

Use the download button to access the MAX4381EUB+ schematic symbol, PCB footprint, and 3D model.
