MAX4392ESA+ - Analog Devices

Description: Maxim MAX4392ESA+, Dual High Speed Op Amp, 85MHz Rail-Rail, 4.5 → 11 V, 8-Pin SOIC

Download MAX4392ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

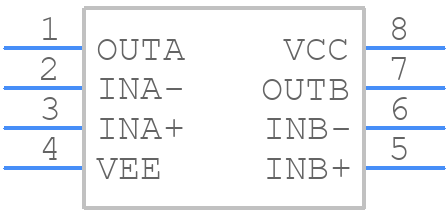

MAX4392ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4392ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX4392ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX4392ESA+ Details

  • Manufacturer Part Number:

    MAX4392ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2002-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    15 µA

  • Bandwidth (3dB)-Nom:

    90 MHz

  • Bias Current-Max (IIB) @25C:

    15 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    5 µA

  • Input Offset Voltage-Max:

    28000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    500 V/us

  • Supply Current-Max:

    20 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    316.227

  • Wideband:

    YES

  • Width:

    3.9 mm

MAX4392ESA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4392ESA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input and output capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors should be chosen based on the specific application requirements. For the input capacitor, a low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. For the output capacitor, a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF is recommended. The capacitor values should be chosen to ensure that the device meets the required ripple rejection and stability criteria.
  • The MAX4392ESA+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may vary. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • To ensure stability, it's recommended to follow the recommended PCB layout and component selection guidelines. Additionally, the input and output capacitors should be chosen to meet the required stability criteria. The device's stability can be verified by checking the output voltage ripple and noise, and by performing a stability analysis using the device's transfer function.
  • Yes, the MAX4392ESA+ is suitable for high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it meets the required automotive standards such as AEC-Q100. However, it's recommended to consult with Analog Devices Inc for specific application requirements and to ensure that the device meets the required qualification and certification criteria.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4392ESA+ Overview

Use the download button to access the MAX4392ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX43, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
