MAX4414ESA+ - Analog Devices

Description: High Speed Operational Amplifiers Low-Power, +3V/+5V, 400MHz Single-Supply Op Amps with Rail-to-Rail Outputs

Download MAX4414ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

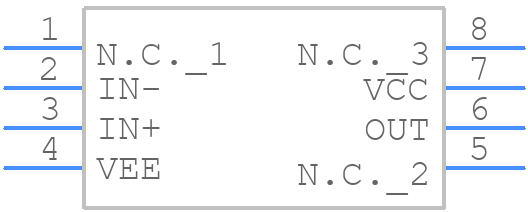

MAX4414ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4414ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
MAX4414ESA+ - Analog Devices - 3D model - Small Outline Packages - -8 so
click to zoom

MAX4414ESA+ Details

  • Manufacturer Part Number:

    MAX4414ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2000-12-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    4 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    94 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    200 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    1412.53

  • Wideband:

    YES

  • Width:

    3.9 mm

MAX4414ESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX4414ESA+ involves keeping the input and output traces as short as possible, using a ground plane to reduce noise, and placing the device close to the audio source. Additionally, it's recommended to use a 0.1uF decoupling capacitor between the VCC pin and GND, and to keep the analog and digital grounds separate.
  • To optimize the gain setting for your specific application, you'll need to consider the input signal level, the desired output signal level, and the noise floor of your system. The MAX4414ESA+ has a gain range of 0dB to 50dB, and you can adjust the gain using the GAIN pin. You may need to experiment with different gain settings to find the optimal value for your application.
  • The maximum input signal level that the MAX4414ESA+ can handle is 3.5Vrms, which is equivalent to 5Vp-p. Exceeding this level can cause distortion and clipping. If your input signal exceeds this level, you may need to add an attenuator or a voltage divider to reduce the signal level.
  • The MAX4414ESA+ is specified to operate from -40°C to +85°C. To ensure that the device operates within this range, you should consider the ambient temperature of your system, as well as any self-heating effects. You may need to add thermal management measures, such as heat sinks or thermal interfaces, to keep the device within its specified temperature range.
  • The typical current consumption of the MAX4414ESA+ is 2.5mA, but this can vary depending on the gain setting, input signal level, and other factors. You should consult the datasheet and consider your specific application when estimating the current consumption of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4414ESA+ Overview

Use the download button to access the MAX4414ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
