MAX4416ESA+ - Analog Devices

Description: High Speed Operational Amplifiers Low-Power, +3V/+5V, 400MHz Single-Supply Op Amps with Rail-to-Rail Outputs

Download MAX4416ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

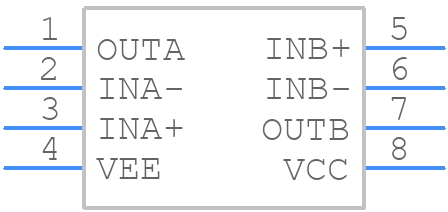

MAX4416ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4416ESA+ - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - MAX4416ESA+
click to zoom
3D Models
MAX4416ESA+ - Analog Devices - 3D model - SOT23 (8-Pin) - MAX4416ESA+
click to zoom

MAX4416ESA+ Details

  • Manufacturer Part Number:

    MAX4416ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2000-12-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    4 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    94 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    200 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    1412.53

  • Wideband:

    YES

  • Width:

    3.9 mm

MAX4416ESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX4416ESA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the MAX4416ESA+ in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, consider using a differential input configuration to reject common-mode noise.
  • The maximum power dissipation of the MAX4416ESA+ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions to ensure reliable operation.
  • Yes, the MAX4416ESA+ can be used in a battery-powered device. The device has a low quiescent current of 1.2mA, making it suitable for battery-powered applications. However, it's essential to consider the power consumption of the entire system and ensure that the battery life meets the required specifications.
  • To troubleshoot issues with the MAX4416ESA+, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals using an oscilloscope to identify any anomalies. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4416ESA+ Overview

Use the download button to access the MAX4416ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
