MAX4418EUD+ - Analog Devices

Description: High Speed Operational Amplifiers Low-Power, +3V/+5V, 400MHz Single-Supply Op Amps with Rail-to-Rail Outputs

Download MAX4418EUD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

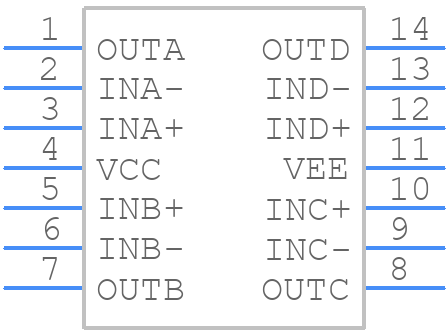

MAX4418EUD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4418EUD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX4418EUD+
click to zoom
3D Models
MAX4418EUD+ - Analog Devices - 3D model - Small Outline Packages - MAX4418EUD+
click to zoom

MAX4418EUD+ Details

  • Manufacturer Part Number:

    MAX4418EUD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2000-12-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    4 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    94 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    200 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    1412.53

  • Wideband:

    YES

  • Width:

    4.4 mm

MAX4418EUD+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX4418EUD+ involves keeping the input and output traces as short as possible, using a ground plane to reduce noise, and placing the device close to the audio source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the gain setting for your specific application, you'll need to consider the input signal level, the desired output signal level, and the noise floor of your system. You can use the gain equation provided in the datasheet to calculate the optimal gain setting. Additionally, you may need to experiment with different gain settings to find the optimal value for your specific use case.
  • The maximum power dissipation for the MAX4418EUD+ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at an ambient temperature of 25°C. However, this value can be derated at higher temperatures. It's recommended to consult the thermal resistance tables in the datasheet to determine the maximum power dissipation for your specific application.
  • The MAX4418EUD+ has a built-in low-pass filter that can help filter out high-frequency noise and interference. Additionally, you can use external filters, such as capacitors or inductors, to further filter out noise and interference. It's also recommended to use shielding and grounding techniques to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • The recommended input impedance for the MAX4418EUD+ is 1kΩ to 10kΩ. This impedance range allows for optimal signal transfer and minimizes the impact of input capacitance on the audio signal. However, the input impedance can be adjusted to match the specific requirements of your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4418EUD+ Overview

Use the download button to access the MAX4418EUD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
