MAX4420ESA+ - Analog Devices

Description: High-Speed, 6A MOSFET Driver (Noninverting)

Download MAX4420ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

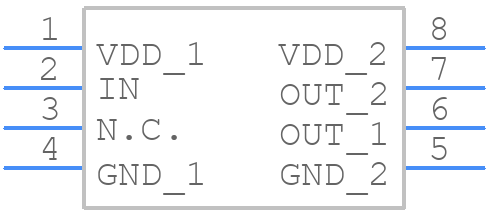

Symbol
MAX4420ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4420ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX4420ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX4420ESA+ Details

  • Manufacturer Part Number:

    MAX4420ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SLIM, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1992-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.1 µs

  • Turn-on Time:

    0.1 µs

  • Width:

    3.9 mm

MAX4420ESA+ Frequently Asked Questions (FAQs)

  • The MAX4420ESA+ is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure proper operation. Place the device close to the power supply, use short traces, and avoid vias under the device. Also, keep the input and output traces separate and away from each other to minimize crosstalk.
  • The MAX4420ESA+ has a thermal pad that must be connected to a thermal plane or a heat sink to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink with a low thermal resistance. Also, avoid blocking airflow around the device and keep it away from other heat sources.
  • The recommended input capacitance is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. However, the optimal capacitance values may vary depending on the specific application and operating conditions. It's essential to experiment and find the optimal values for your design.
  • To ensure stability, follow the recommended layout and placement guidelines, and use the recommended input and output capacitance values. Also, ensure that the power supply is well-regulated and has a low impedance. If oscillations occur, try adding a small series resistor (e.g., 10Ω) at the output or increasing the output capacitance.
  • The maximum power dissipation for the MAX4420ESA+ is 1.4W. However, this value can vary depending on the operating conditions, such as temperature, input voltage, and output current. Ensure that the device is operated within the recommended operating conditions to avoid overheating and damage.
