MAX44248ASA+T - Analog Devices

Description: Operational Amplifiers - Op Amps Dual operational amplifier features very low power operation with a wide range supply

Download MAX44248ASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

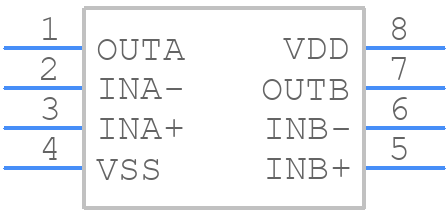

MAX44248ASA+T - Analog Devices - PCB symbol
